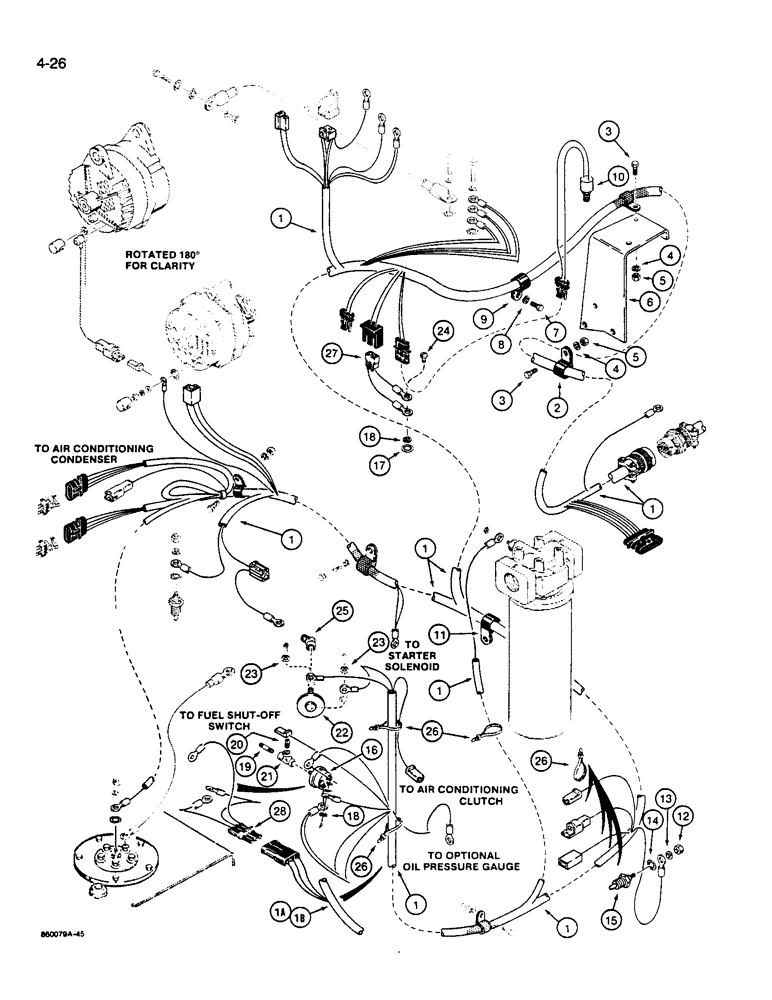

Запчасти Case W14B (4-26) - REAR HARNESS - ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L118146

HARNESS

- rear, used with Delco alternator

1шт.

1a

L123681

HARNESS

- rear, used with Bosch alternator, uses plastic alternator output cap, no longer available, order L124473

1шт.

1b

L124473

HARNESS

- rear, used with Bosch alternator, has molded rubber alternator output cap

1шт.

2

D40471

CLAMP

- harness

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

L116792

BRACKET

- harness

1шт.

7

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

NLS

NO LONGER SERVICED

CLAMP - harness

1шт.

10

L116711

SWITCH

- clutch pressure

1шт.

11

49836

CLAMP

- harness, uses transmission housing hardware

1шт.

12

129-37

NUT,#10-32

1шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

14

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

15

L104249

SWITCH

SENDER - torque converter oil temperature

1шт.

16

L112707

SWITCH

SENDER - oil pressure

1шт.

17

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

18

87812

LOCK WASHER,#8

Washer, Lock, #8

5шт.

19

221-1714

PIPE,Nipple, 1/8" NPT x 1 1/2", X-Strng

NIPPLE - 1/8" x 1-1/2"

1шт.

20

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8" NPT

1шт.

21

221-1421

TEE,Pipe, 1/8" NPT

- 1/8" NPT

1шт.

22

L112211

SWITCH

- vacuum, air restriction indicator

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER - lock, No. 6

2шт.

24

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head, slotted, No. 8 - 32 NC x 1/4"

2шт.

25

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, See Figure 2-46, Ref. 22 for special fitting used with turbocharged engine 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

L118468

HARNESS

JUMPER - neutral start

1шт.

#27: neutral start switch posts go thru the eyelets

1шт.

28

L123675

HARNESS

JUMPER - oil pressure sender

1шт.
