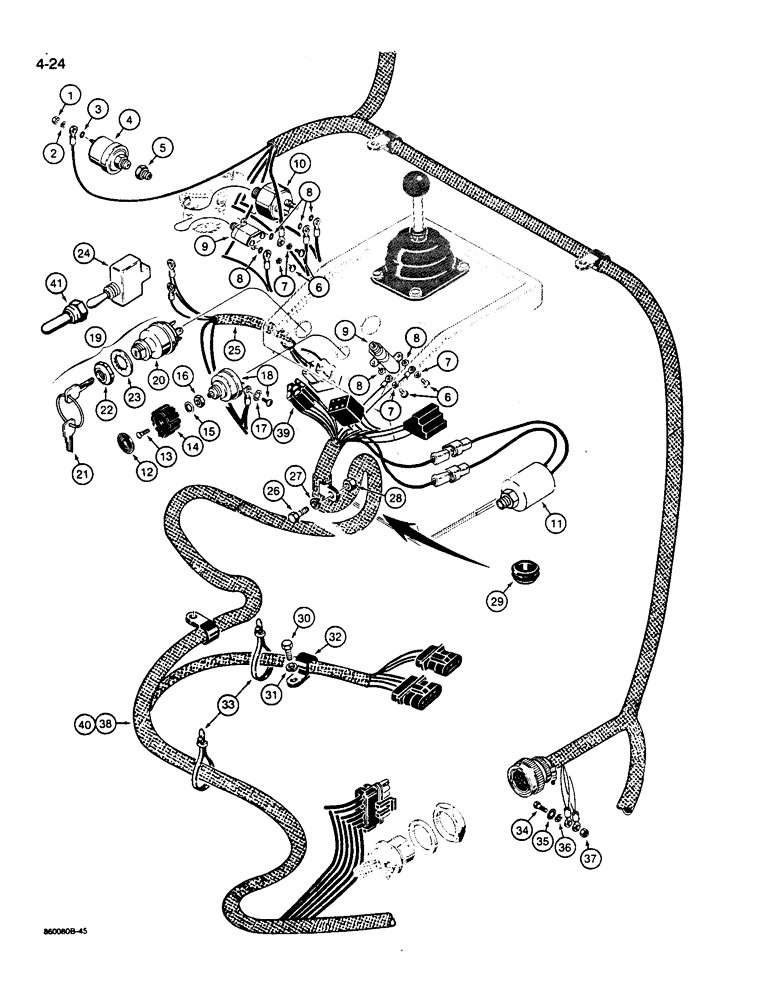

Запчасти Case W14B (4-24) - FRONT HARNESS - CONSOLE (04) - ELECTRICAL SYSTEMS

1

129-37

NUT,#10-32

1шт.

2

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

4

L109945

TRANSMITTER

SENDER - air pressure

1шт.

5

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

6

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- pan head slotted, No. 8 - 32 NC x 1/2", plated

4шт.

7

87812

LOCK WASHER,#8

Washer, Lock, #8

4шт.

8

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8

6шт.

9

L48480

SWITCH

- air pressure

2шт.

10

L47989

SWITCH

- stop and tail lamp

1шт.

11

A167644

PRESSURE SWITCH

SWITCH - air, parking brake

1шт.

12

A160035

PLATE

- control knob

1шт.

13

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- pan head slotted, No. 8 - 32 NC x 5/8"

1шт.

14

A141735

KNOB

- lamp switch

1шт.

15

193-101

LOCK WASHER,Int Tooth, 11/16"

WASHER - lock, internal tooth lock, 11/16"

1шт.

16

A20467

NUT

- hex, self-locking, special

1шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

18

A141607

SWITCH

- lamp

1шт.

19

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - key, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

21

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

22

A77314

NUT

- hex

1шт.

23

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

24

S88636

IGNITION SWITCH

SWITCH - toggle, loader detent

1шт.

25

L118084

HARNESS

- console

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

29

A75989

GROMMET

- control console

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

49838

CLAMP

- harness

2шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

193-72

LOCK WASHER

- external-internal tooth lock, 3/8", plated

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

38

L118141

HARNESS

- front, Includes: Ref. 39, Start Serial: 9158564

1шт.

39

L79667

CONNECTOR, ELEC

CONNECTOR - harness

1шт.

Ref #39 - Ignition Switch plugs into this connector

1шт.

40

L117177

HARNESS

- front, for service order Ref. 38, L118141 harness, Ref. 11, A167644 switch, and Ref. 25, L118084 console harness, Serial Range: -9158564

1шт.

41

L101998

BOOT

COVER - switch protector, used on models with canopy only

1шт.
