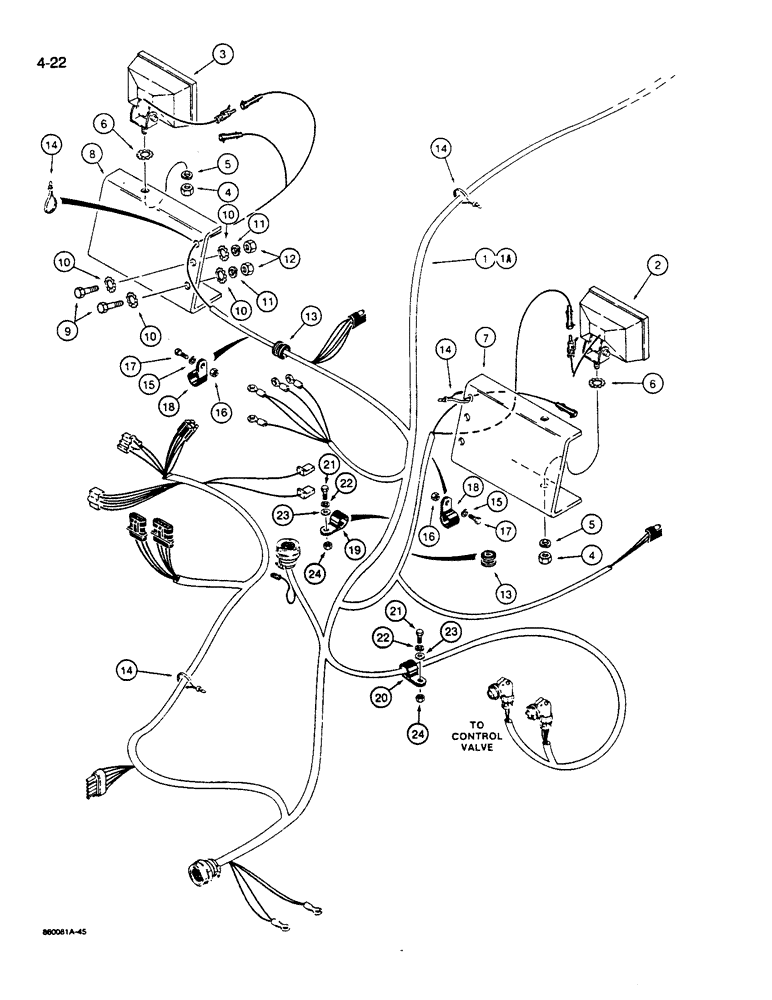

Запчасти Case W14B (4-22) - FRONT HARNESS - LAMPS AND CONTROL VALVE (04) - ELECTRICAL SYSTEMS

1

L118141

HARNESS

- front, Start Serial: 9158564

1шт.

1a

L117177

HARNESS

- front, for service order Ref. 1, L118141 harness and Ref. 11 and 25 on Figure 4-24, Serial Range: -9158564

1шт.

2

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-44

2шт.

3

L113374

LIGHT

LAMP - front driving, parts list Figure 4-44

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2-4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2-4шт.

6

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-4шт.

7

L116672

BRACKET

- lamp mounting, right-hand

1шт.

8

L116673

BRACKET

- lamp mounting, left-hand

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

13

L114509

GROMMET

- wire

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

49859

CLAMP

- harness

2шт.

19

51200320

CLAMP

- harness

1шт.

20

49839

CLAMP

- harness

1шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
