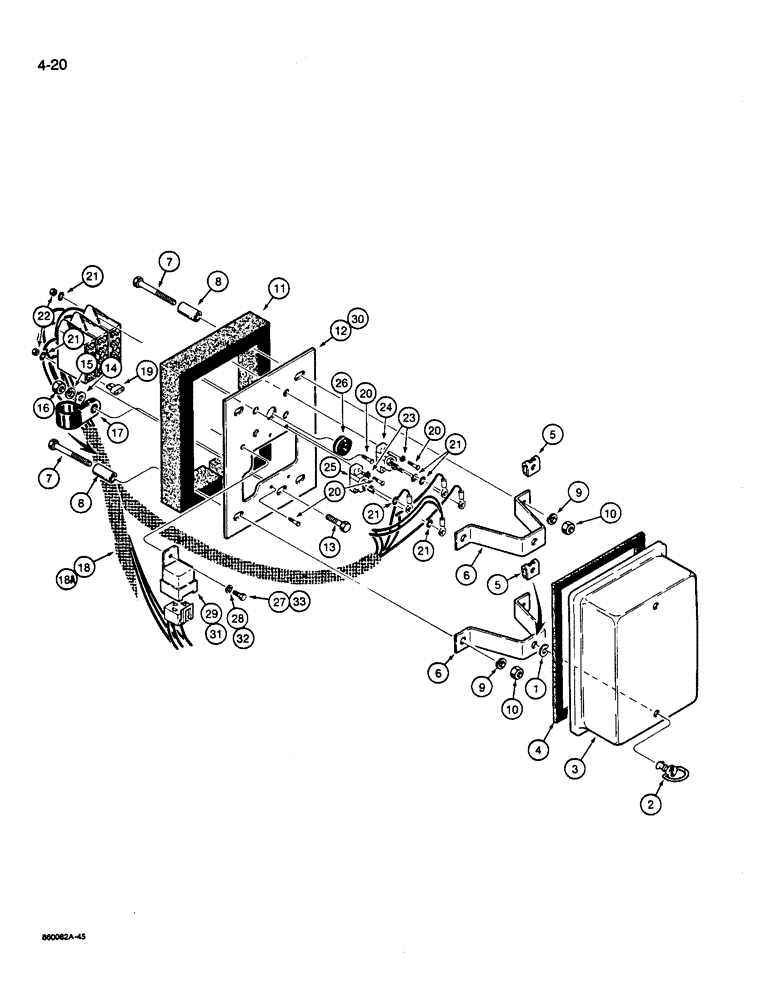

Запчасти Case W14B (4-20) - FRONT HARNESS - FUSE BOX (04) - ELECTRICAL SYSTEMS

1

L103349

WASHER

RETAINER - split ring

2шт.

2

L103347

ANCHOR

FASTENER - cover

2шт.

3

L108029

COVER

- electrical components

1шт.

4

L108046

GASKET

- cover

1шт.

5

A36042

CLIP

RECEPTACLE - fastener

2шт.

6

L108052

BRACKET

MOUNT - cover

2шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

8

D40925

SPACER

- bolt

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

L107680

GASKET

- panel

1шт.

12

L116729

PANEL

- electrical components, used with Ref. 29, plastic relay

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

R14668

CLAMP

- harness

1шт.

18

L118141

HARNESS

- front, Start Serial: 9158564

1шт.

18a

L117177

HARNESS

- front, for service order Ref. 18, L118141 harness and Ref. 11 and 25 on Figure 4-24, Serial Range: -9158564

1шт.

19

A149796

FUSE

- 3 amp

7шт.

20

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", plated

8шт.

21

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

22

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

4шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

24

L115178

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

25

L115179

BREAKER

CIRCUIT BREAKER - 20 amp

1шт.

26

D121047

GROMMET

- panel, fuse

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with plastic relay Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used with plastic relay 1/4"

1шт.

29

L114539

RELAY

- lamps, plastic, no longer available, order Ref. 31, 32, and 33

1шт.

30

L118430

PANEL

- electrical components, used with Ref. 31, metal relay

1шт.

31

L118429

RELAY

- lamps, metal

1шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used with metal relay #10

1шт.

33

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", plated, used with metal relay

1шт.
