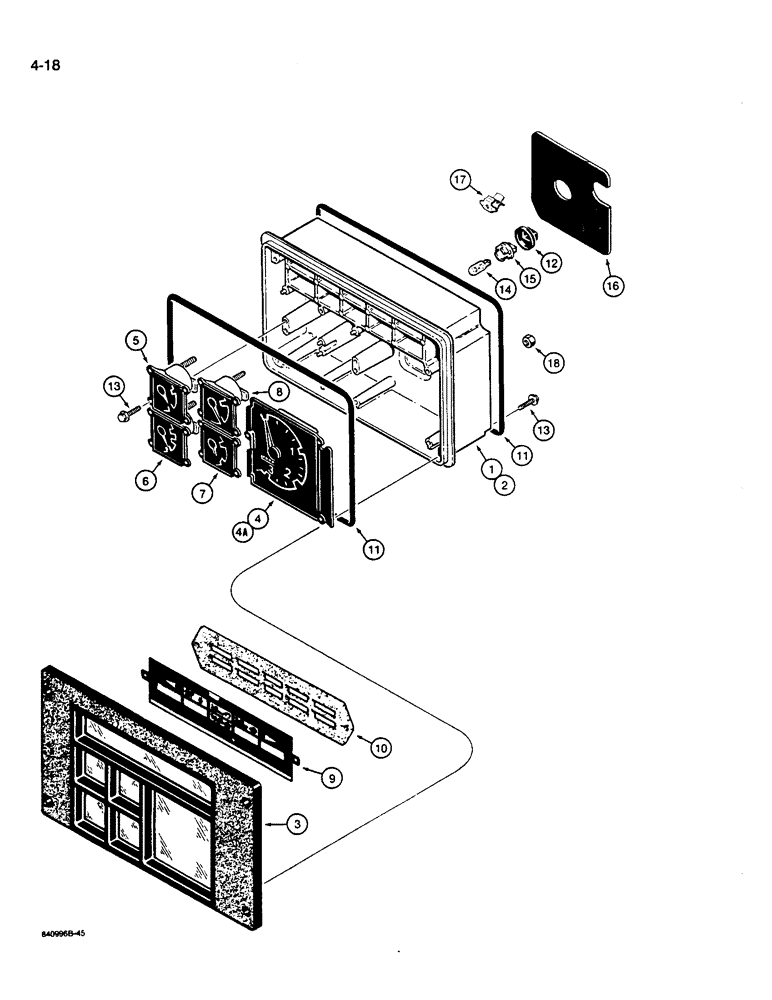

Запчасти Case W14B (4-18) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

L116014

CLUSTER

- instrument, 24 volt, with green dot, used with Delco alternator, Includes: Ref. 1 - 18

1шт.

L118321

CLUSTER, INSTR.

CLUSTER - instrument, 24 volt, with red dot, used with Bosch alternator, Includes: Ref. 1 - 18

1шт.

1

N9152

HOUSING

- instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

CIRCUIT - printed, instrument cluster, not shown

1шт.

3

D71334

LENS

- instrument cluster

1шт.

4

N13549

TACHOMETER

GAUGE - tachometer, used with L116014 instrument cluster

1шт.

4a

N13960

TACHOMETER

GAUGE - tachometer, used with L118321 instrument cluster

1шт.

5

N7179

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

6

N7180

FUEL GAUGE

GAUGE - fuel

1шт.

7

N7181

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

8

N7182

ELECTRICAL GAUGE

GAUGE - oil temperature

1шт.

9

N6809

INDICATOR

LENS - warning lamp identification

1шт.

10

D71342

GASKET,3.05mm Thk

- lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

12

D71344

COVER

BOOT - lamp socket

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

14

N8330

LAMP

- instrument cluster

11шт.

15

N8481

HOLDER

SOCKET - lamp

11шт.

16

H422758

GASKET,1.52mm Thk

- back cover

1шт.

17

H422766

CLIP, SPRING

CLIP - gauge

12шт.

18

129-15

NUT,#6-32

3шт.
