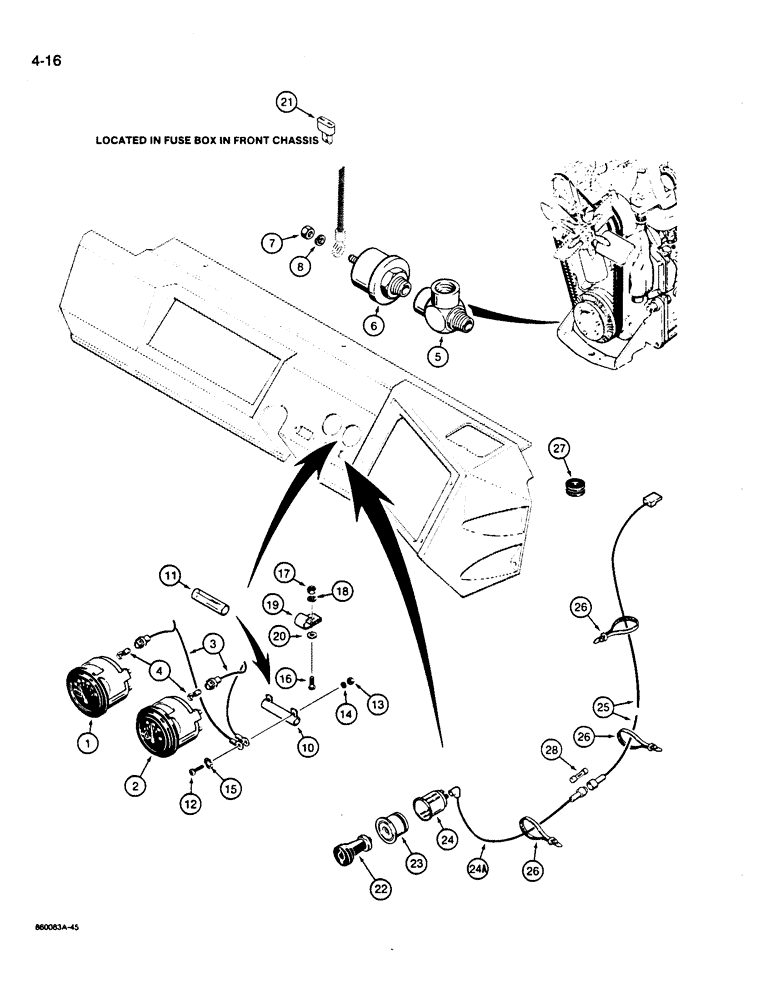

Запчасти Case W14B (4-16) - OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

1

L111876

GAUGE

- voltmeter

1шт.

2

L127113

GAUGE

- oil pressure

1шт.

3

L115038

SOCKET

- lamp

2шт.

4

B50213

BULB

- gauge, No. 53

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- engine oil pressure sender

1шт.

6

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

7

129-37

NUT,#10-32

1шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

10

L103985

RESISTOR

- 39 ohm, 12 watt

1шт.

11

223-125

TUBE

SHRINK TUBING - resistor

2шт.

12

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head slotted, No. 8 - 32 NC x 3/8"

2шт.

13

129-16

NUT,#8-32

2шт.

14

87812

LOCK WASHER,#8

Washer, Lock, #8

2шт.

15

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8, plated

2шт.

16

182-571

SCREW,Cross Pan Hd, #6-32 x 1/2"

- pan Phillips head, No. 6 - 32 NC x 1/2", black

1шт.

17

129-15

NUT,#6-32

1шт.

18

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

19

L73415

CLAMP

- resistor

1шт.

20

195-85

WASHER,#6

- flat, No. 6, black teflon coated

1шт.

21

A149796

FUSE

- 3 amp, in fuse holder on front chassis

1шт.

L111915

CIGAR LIGHTER

LIGHTER - cigar, 24V, Includes: Ref. 22 - 24A

1шт.

22

N9430

UNIT

HANDLE - pop-out, cigar lighter

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - cigar lighter

1шт.

24

N9429

ELEMENT

SHIELD - element, cigar lighter

1шт.

24a

NSS

NOT SOLD SEPARAT

WIRE - cigar, Serial Range: lighter-fuse

1шт.

25

L116022

HARNESS

WIRE - cigar lighter, Serial Range: fuse-harness

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

27

L77834

GROMMET

- wire, at hole in cab floor, if used

1шт.

28

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.
