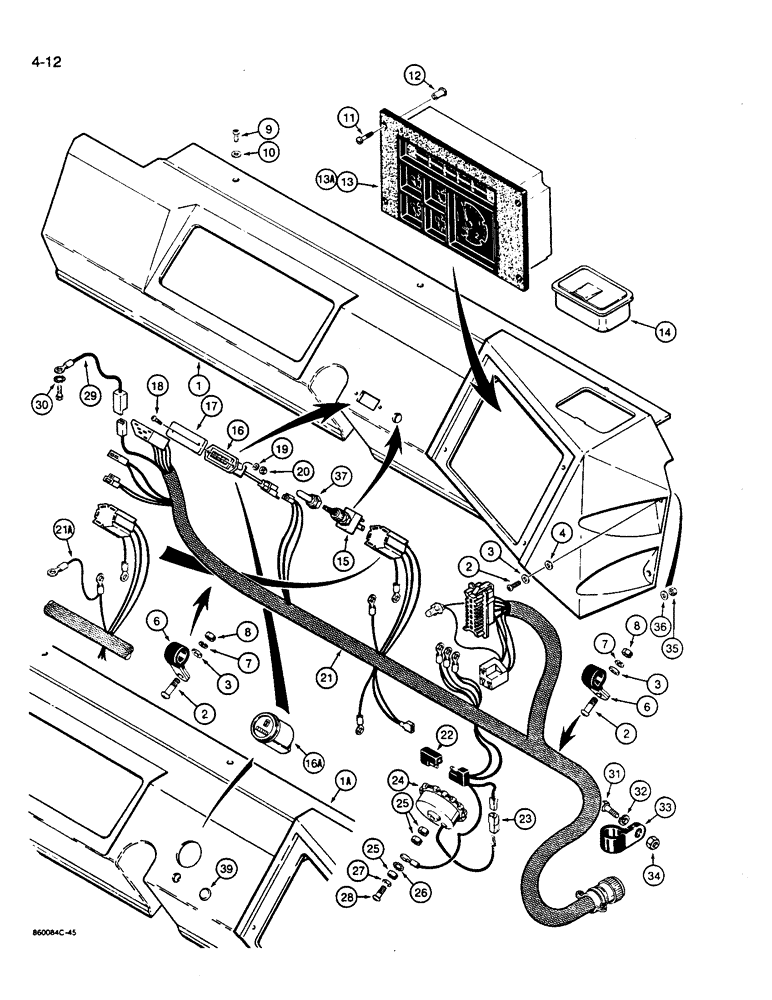

Запчасти Case W14B (4-12) - INSTRUMENT PANELS AND TACHOMETER (04) - ELECTRICAL SYSTEMS

1

L112229

PANEL

- instrument, used with Delco alternator and L114392 hourmeter

1шт.

1a

L123649

PANEL

- instrument, used with Bosch alternator and L118551 hourmeter and with ash tray, cab models only

1шт.

1b

L123863

PANEL

- instrument, used with Bosch alternator and L118551 hourmeter and without ash tray, canopy models only, not shown

1шт.

2

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4" - 20 NC x 3/4", black

6шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black Teflon coated

6шт.

4

A161723

WASHER

- rubber, 1/4"

4шт.

6

V34264

CLAMP,3/4", Insul, 1/4" Bolt

- harness

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

9

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips head, No. 10 - 24 NC x 3/4", black Teflon coated

3шт.

10

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black Teflon coated

3шт.

11

182-570

SCREW,Cross Pan Hd, #10-32 x 1"

- machine, pan Phillips head, No. 10 - 32 NF x 1", black Teflon coated

4шт.

12

L60362

RING NUT

- special

4шт.

13

L116014

CLUSTER

- instrument panel, with bright green dot, used with Delco alternator, parts list Figure 4-18

1шт.

13a

L118321

CLUSTER, INSTR.

CLUSTER - instrument panel, with bright red dot, used with Bosch alternator, parts list Figure 4-18

1шт.

14

L61261

ASH TRAY

TRAY - ash, instrument panel, if used

1шт.

15

D75360

SWITCH

- test, hydraulic oil filter and air filter

1шт.

16

L114392

HOURMETER

- instrument panel, used with Delco alternator

1шт.

16a

L118551

HOURMETER

- instrument panel, used with Bosch alternator

1шт.

17

L109528

COVER

- lens protector, used on models with canopy only, if used

1шт.

18

182-592

SCREW,Cross Pan Hd, #6-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 6 - 32 NC x 3/4", black Teflon coated, if used

2шт.

19

195-507

WASHER,#6

- flat, No. 6, plated, if used

2шт.

20

131-503

LOCK NUT

NUT - hex, self-locking, No. 6 - 32 NC, if used

2шт.

21

L115711

HARNESS

- instrument panel, no longer available, replace with L126110 harness, Ref. 21A

1шт.

21a

L126110

HARNESS

- instrument panel, use on models with bucket coupler

1шт.

22

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

23

223-166

CONNECTOR, ELEC

CONNECTOR - wire female

1шт.

24

L115252

BUZZER

- low air pressure

1шт.

25

129-15

NUT,#6-32

- hex, No. 8 - 32 NC, plated

3шт.

26

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - external-internal tooth lock, No. 8, plated

1шт.

27

195-510

WASHER,#8

- flat, No. 8, plated

1шт.

28

182-593

SCREW,Cross Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 8 - 32 NC x 3/4", black Teflon coated

1шт.

29

L115040

CABLE

- ground, instrument panel

1шт.

30

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, zinc plated, used on models with canopy only

4шт.

36

495-21031

WASHER,1/4"

- flat, , zinc plated, used on models with canopy only 1/4"

4шт.

37

L101998

BOOT

COVER - switch protector, used on models with canopy only

1шт.

39

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.
