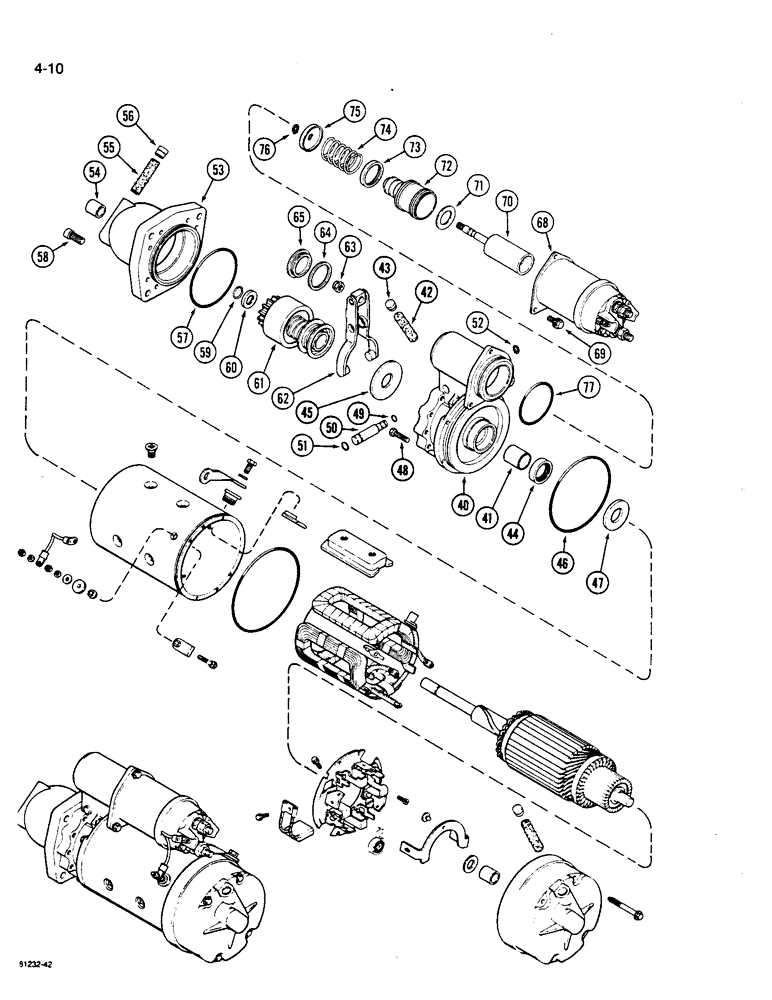

Запчасти Case W14B (4-10) - A169694 STARTER (04) - ELECTRICAL SYSTEMS

A169694

STARTING MOTOR

STARTER ASSEMBLY, Includes: Ref. 40 - 77, Washer, and, Nut and Ref. 1 - 37 on Figure 4-8

1шт.

AR169694

REMAN-STARTER

Remanufactured, STARTER

1шт.

AC169694

CORE-STARTER

Return Number

1шт.

40

A49580

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 41 - 45

1шт.

41

A49581

BUSHING

BUSHING - housing

1шт.

42

A49567

WICK

WICK - oil, lever housing

1шт.

43

A49573

PLUG

PLUG - oil wick, lever housing

1шт.

44

A49562

OIL SEAL

SEAL - oil

1шт.

45

A49582

WASHER

WASHER - brake

1шт.

46

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - housing, lever

1шт.

47

A49625

SPACER

SPACER - between armature and lever housing

1шт.

48

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT - hex, 1/4 NF x 1 inch

5шт.

49

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - sealing, shaft

1шт.

50

A42199

PIN

SHAFT - shift lever

1шт.

51

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - large, pivot stud

1шт.

52

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

53

A49498

HOUSING

SPARE PART HOUSING - drive, Includes: Ref. 54 - 57

1шт.

54

A40868

BUSHING

BUSHING - frame, commutator

1шт.

55

A49567

WICK

WICK - oil, lever housing

1шт.

56

A49573

PLUG

PLUG - oil wick, lever housing

1шт.

57

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing, lever

1шт.

58

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

59

A49586

CLIP,ELECTRICAL

RING - pinion retaining

1шт.

60

A49585

STOP

STOP - pinion

1шт.

61

A49584

DRIVE

DRIVE ASSEMBLY - motor

1шт.

62

A49583

LEVER

LEVER ASSEMBLY - shift

1шт.

63

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

1шт.

64

A41924

GASKET

GASKET - plug

1шт.

65

R21587

PLUG

PLUG - inspection, lever housing

1шт.

68

A49756

SOLENOID

SOLENOID ASSEMBLY - starter

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW ASSEMBLY - mounting, solenoid

3шт.

70

A49588

SPARE PART PLUNGER - solenoid

1шт.

71

A41922

WASHER

WASHER - plunger seat

1шт.

72

A49589

BOOT

BOOT - plunger

1шт.

73

A43380

BACK-UP RING

SEAT- spring, plunger

1шт.

74

A41242

SPRING

SPRING - return, plunger

1шт.

75

A43419

SEAT

SEAT - outer, spring

1шт.

76

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

77

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING, -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

R15013

WASHER

WASHER - terminal stud (Not shown)

1шт.

425-106

NUT,3/8"-16, Cl 5

NUT, (Not shown) 3/8"-16, G5

1шт.
