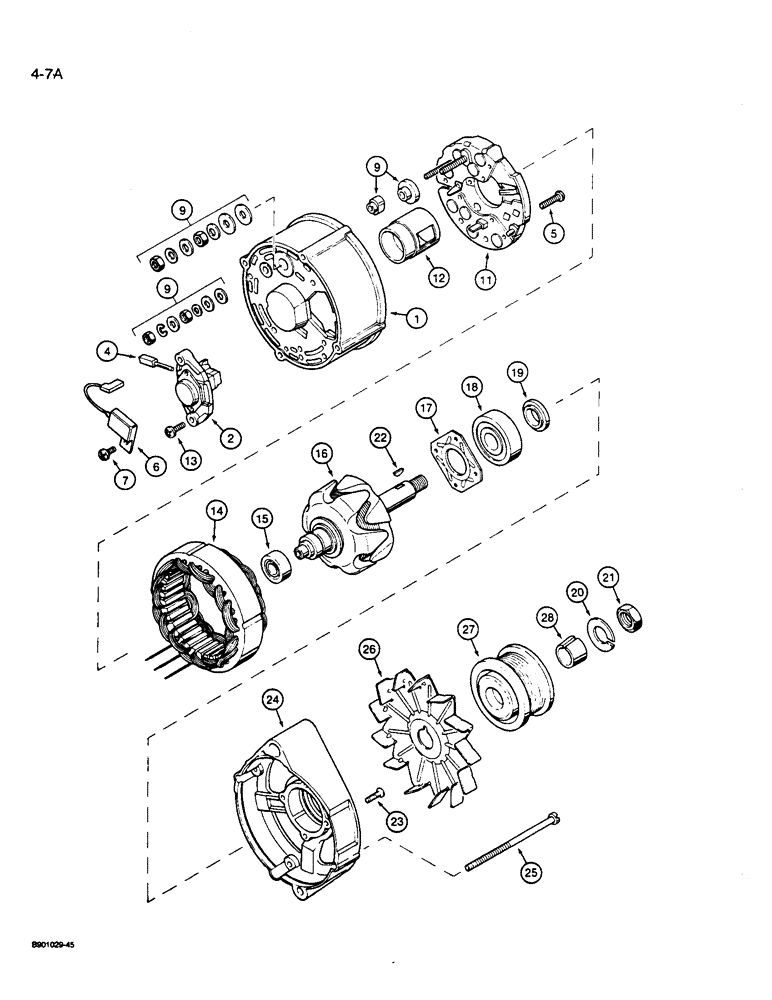

Запчасти Case W14B (4-07A) - BOSCH ALTERNATOR - A187916, IF USED, 45 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

A187916

ALTERNATOR,24V, 45A

ALTERNATOR ASSEMBLY - engine, for 24 volt system, Bosch No.120488206, type K1-28V 3/45A, Includes: Ref. 1 - 25

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

1

A187996

HOUSING

HOUSING - collector ring end

1шт.

2

A187998

REGULATOR

REGULATOR - voltage, Includes: Ref. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - alternator

1шт.

5

A187898

SCREW

BOLT - with washer, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

7

1964969C1

SCREW

SCREW - Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

11

A187997

RECTIFIER

BRIDGE - rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD - alternator

1шт.

13

A187907

CAPTIVE WASHER SCREW

BOLT - with washer, voltage regulator retaining

2шт.

14

A188000

STATOR

STATOR ASSEMBLY - alternator

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

BEARING - ball, rotor, collector ring end

1шт.

16

A187502

ROTOR ASSY.

ROTOR ASSEMBLY - alternator

1шт.

17

A187901

FIXING PLATE

PLATE - bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - retaining, rotor, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, not used in A187916 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A191103

COVER

COVER - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - cover retaining

4шт.

26

221425R1

FAN

FAN - alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY - drive, not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER - pulley, not included with alternator assembly, order separately

1шт.
