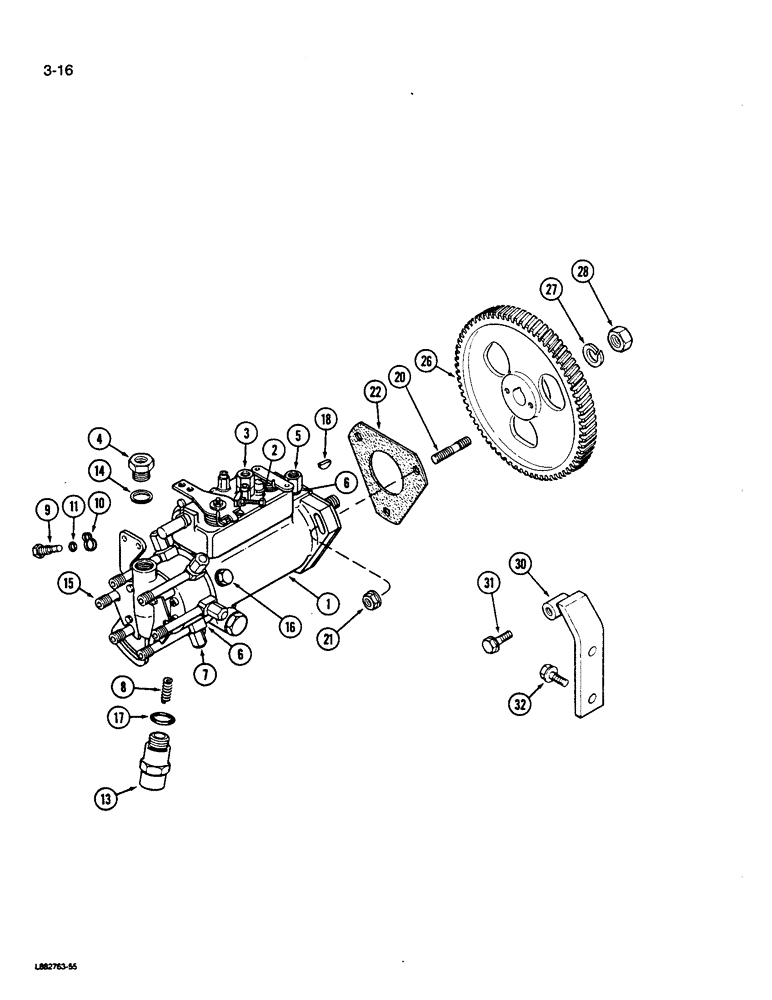

Запчасти Case W14B (3-16) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (TURBOCHARGED) (03) - FUEL SYSTEM

JR908977

PUMP

ASSEMBLY - fuel injection, remanufactured (North America only)

1шт.

JC908977

CORE-INJECTION PUMP

RETURN NUMBER - injection pump (Use this number to return pump core for credit)

1шт.

1

J908977

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, Includes: Ref. 2 - 18

1шт.

2

J904637

SET SCREW

- idle set

1шт.

3

J904640

VENT

ORIFICE - bleed

1шт.

4

J904641

FITTING

- inlet

1шт.

5

J904643

FITTING

- return

1шт.

6

J904644

WASHER

- sealing (Package of 10)

13шт.

7

J904646

BANJO BOLT

BOLT - banjo

1шт.

8

J904777

SPRING

- solenoid

1шт.

9

J904778

BOLT

SCREW - timing lock

1шт.

10

J904779

WASHER

- timing lock

1шт.

11

J904780

SEAL

- timing

1шт.

13

J905125

SOLENOID

- fuel (24 Volt)

1шт.

14

K962748

WASHER

- inlet fitting (Copper)

1шт.

15

K962755

ADAPTER

FITTING - banjo

1шт.

16

K963867

SCREW

- bleed, pump head

1шт.

17

J904635

O-RING

- solenoid

1шт.

18

J902332

KEY

- gear retaining

1шт.

20

J902501

STUD

- pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

- flanged hex, 8 mm

3шт.

22

J914389

GASKET

- pump mounting

1шт.

26

J920594

PINION

GEAR - drive, pump (Replaces J912885)

1шт.

27

92-9

BEARING WASHER,9/16"

(If equipped) 9/16"

1шт.

28

A77444

JAM NUT

- hex jam, 9/16 inch NF (If Equipped)

1шт.

30

J905387

BRACE

- injection pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm (Replaces J900630)

1шт.

32

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

(Replaces J902114) Hex Flg, M8 x 30, 8.8

2шт.
