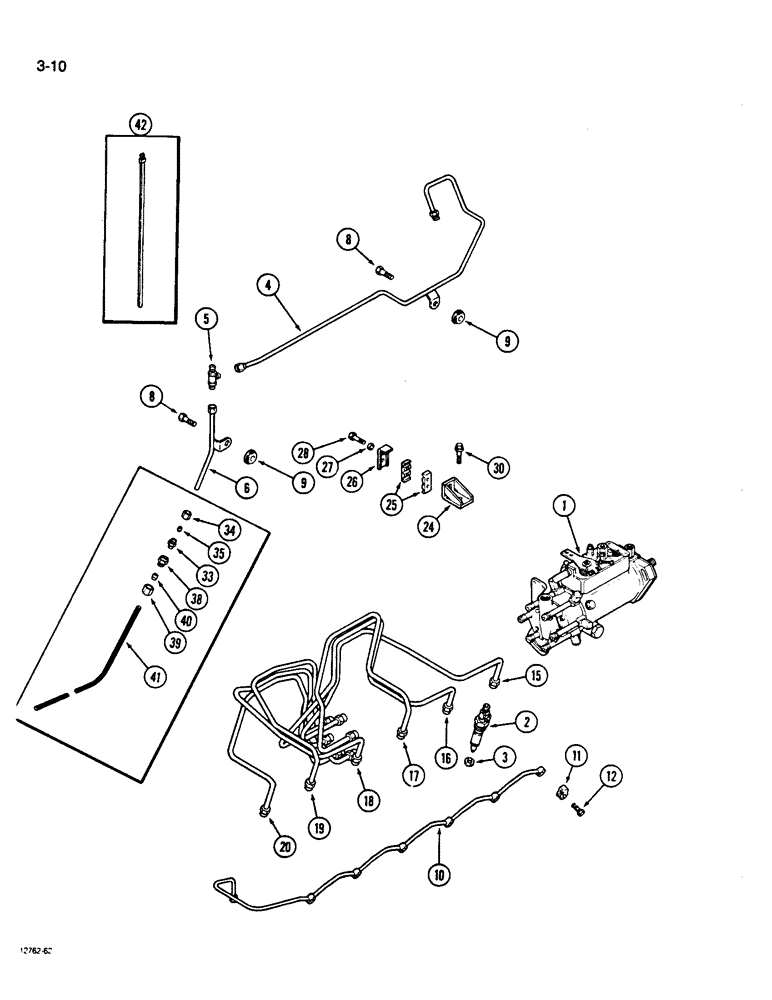

Запчасти Case W14B (3-10) - FUEL INJECTION SYSTEM, 6-590 ENGINE (NATURAL ASPIRATED) (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-14)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-18)

6шт.

3

REF

INSTRUCTION

SEAL - injector (9 mm injector) (See Figure 3-18)

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm (Replaces J900629)

1шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914796

FUEL TUBE

TUBE ASSEMBLY - injector, No. 1 cylinder (Replaces J903527)

1шт.

16

J914798

FUEL TUBE

TUBE ASSEMBLY - injector, No. 2 cylinder (Replaces J903528)

1шт.

17

J914800

FUEL TUBE

TUBE ASSEMBLY - injector, No. 3 cylinder (Replaces J903529)

1шт.

18

J914802

FUEL TUBE

TUBE ASSEMBLY - injector, No. 4 cylinder (Replaces J903530)

1шт.

19

J914804

FUEL TUBE

TUBE ASSEMBLY - injector, No. 5 cylinder (Replaces J903531)

1шт.

20

J914806

FUEL TUBE

TUBE ASSEMBLY - injector, No. 6 cylinder (Replaces J903532)

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex

2шт.

33

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

ADAPTER - compression, 3/16 tube OD x 1/8 inch PT, Includes: Ref. 34 and 35

1шт.

34

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, 3/16 tube OD 3/8"-24, 45º Fl, Comp

1шт.

35

222-651

SLEEVE,3/16" Tube, Comp

Tapered 3/16" Tube, Comp

1шт.

38

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

ADAPTER - compression, 1/4 tube OD x 1/8 inch female PT, Includes: Ref. 39 and 40

1шт.

39

222-5180

TUBE NUT,7/16"-24

- hex, 1/4 tube OD x 7/16"-24

1шт.

40

222-5185

SLEEVE,1/4" Tube

- 1/4 " tube OD

1шт.

41

A60722

TUBE

- fuel, nylon 104 inch

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
