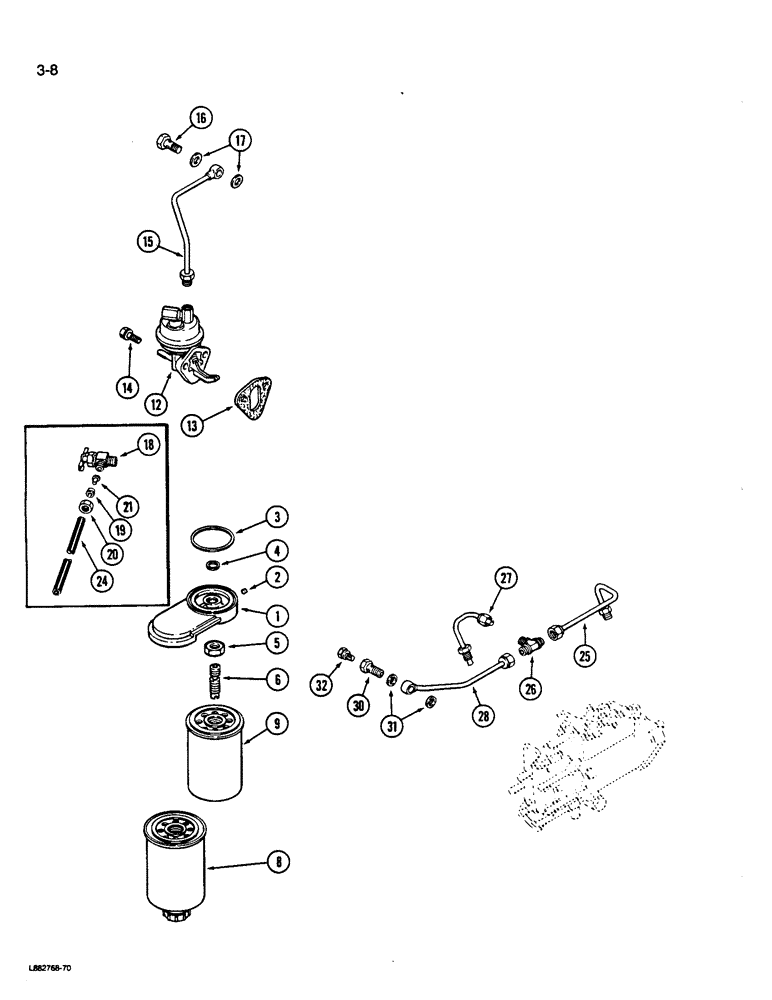

Запчасти Case W14B (3-08) - FUEL FILTER AND LIFT PUMP, 6-590 ENGINE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362), Includes: Ref. 2

1шт.

2

211-101

BALL,1/4" Dia, Stainless

PLUG - expansion, 0.26 mm OD (Replaces A77432)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8 and 9

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- mounting, pump

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm

1шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

17

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm (Replaces J903037)

1шт.

18

A62354

VALVE

ASSEMBLY - fuel shutoff (If Equipped), Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube OD

1шт.

20

222-5181

NUT,9/16"-24

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

21

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD (If Equipped)

1шт.

24

A62320

TUBE

- fuel supply, 105 inch (If Equipped)

1шт.

25

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump

1шт.

26

J905353

TEE

- union, 9/16-24 NF thread

1шт.

27

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

28

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

30

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, (Replaces J905860) M12 x 1.5 x 24

1шт.

31

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm (Replaces J903037)

1шт.

32

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

BOLT - banjo hex, special (replaces J905860)

1шт.

Ref. #30 by itself is J911446, and Ref. #32 by itself is J905403. Combined, they are J905860

1шт.
