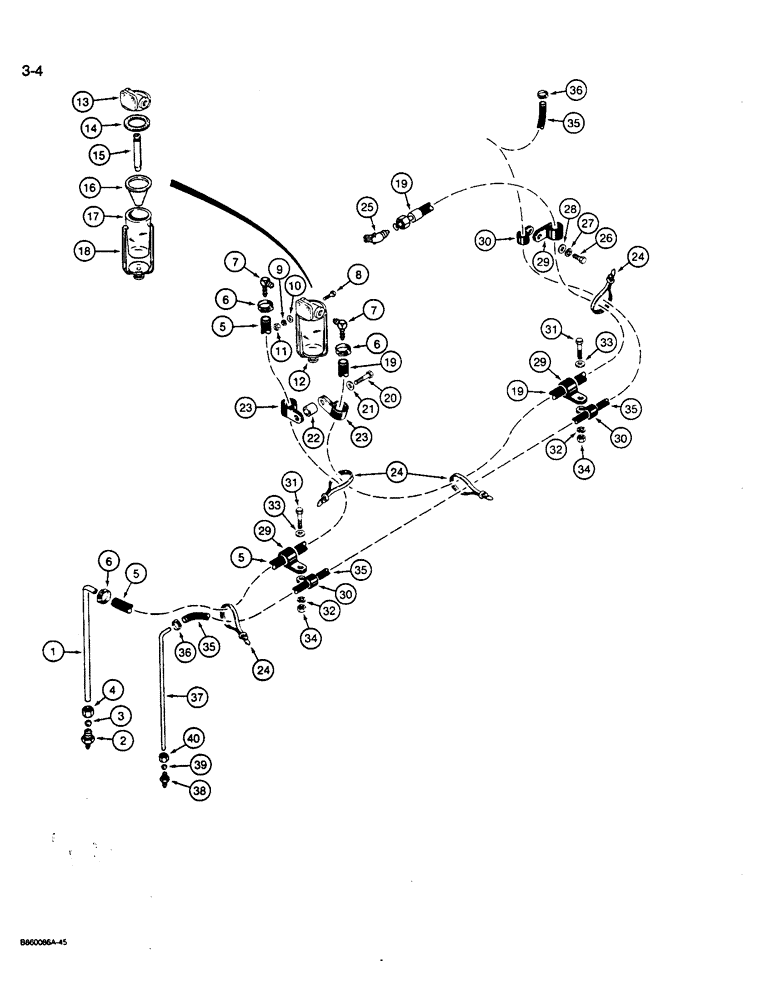

Запчасти Case W14B (3-04) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM

1

L113487

FUEL TUBE,9.53 mm OD x 429.3, 45.7 mm L

TUBE - fuel

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

- compression, straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

5

L116164

HOSE,9.5 mm ID x 1219.00 mm, SAE 30R2 Type 1

Tank to Strainer 9.5 mm ID x 1219.00 mm, SAE 30R2 Type 1

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

3шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

BARB FITTING - 90 degree

2шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

195-102

WASHER,1/4"

- flat, plated 1/4"

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

12

R18798

STRAINER ELEMENT

SEDIMENT BOWL - fuel, Includes: Ref. 13 - 18

1шт.

13

R21356

HOUSING

BODY - sediment bowl

1шт.

14

R21357

GASKET

- sediment bowl

1шт.

15

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

16

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

17

R21361

BOWL

- sediment bowl

1шт.

18

R21358

CLAMP

RETAINER - sediment bowl

1шт.

19

L116163

HOSE ASSY.

HOSE - 78" (1982 mm) long, Serial Range: strainer-pump

1шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

195-104

WASHER,3/8"

- flat, 3/8"

1шт.

22

B18083

BUSHING

SPACER - clamp

1шт.

23

49885

CLAMP

- hose

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

26

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm (8.8), plated

1шт.

27

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

28

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

29

T42284

CLAMP

- hose

3шт.

30

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hose

3шт.

31

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

34

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

35

L113514

FUEL HOSE

HOSE - 3/16" (4.8 mm) ID x 75" (1900 mm) long, fuel return

1шт.

36

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

37

L113486

FUEL TUBE,4.76 mm OD x 429.2, 45.8 mm L

TUBE - fuel return

1шт.

L112236

CONNECTOR, ELEC

CONNECTOR - compression, straight, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

39

222-101

SLEEVE,3/16" Tube

- fitting

1шт.

40

222-111

TUBE NUT,7/16" - 24

COMPRESSION NUT - fitting

1шт.
