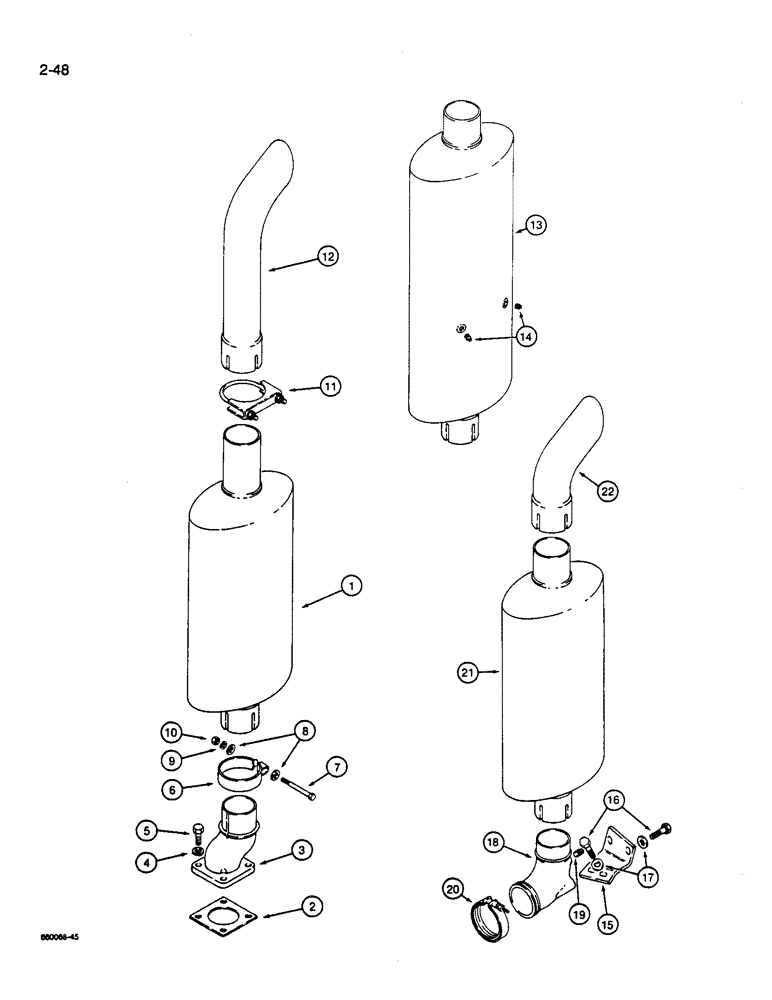

Запчасти Case W14B (2-48) - MUFFLER AND EXHAUST SYSTEM, SPARK ARRESTER MUFFLER, MUFFLER (02) - ENGINE

1

A171542

MUFFLER

- engine exhaust, standard

1шт.

2

A170151

MANIFOLD GASKET

-, Serial Range: manifold-adapter

1шт.

3

A171507

ADAPTER

- muffler

1шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

5

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), plated

4шт.

6

R27691

CLAMP

- muffler

1шт.

7

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Muffler clamp Hex, 3/8"-16 x 3 1/4", G5

1шт.

8

D41740

WASHER

- special, muffler clamp

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

L100055

CLAMP

- exhaust pipe, includes hardware

1шт.

12

A172182

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler, 31-1/2" long

1шт.

13

A171107

MUFFLER

- spark arrester, Includes: Ref. 14

1шт.

14

217-77

PLUG

- square head, 3/8" NPT, brass, spark arrester muffler

2шт.

15

A171823

BRACKET

- exhaust elbow, muffler for turbocharged tractors

1шт.

16

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Muffler for Turbocharged Tractors Hex, M10 x 30, 8.8

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Muffler for turbocharged tractors M10 x 20 x 2

4шт.

18

A173623

ELBOW

- turbocharger exhaust, muffler for turbocharged tractors

1шт.

19

221-841

PLUG

- square head, 1/4" NPT, muffler for turbocharged tractors

1шт.

20

A170467

CLAMP,72mm ID

- turbocharger to elbow, muffler for turbocharged tractors

1шт.

21

A171543

MUFFLER

- turbocharged tractors, muffler for turbocharged tractors

1шт.

22

A160894

EXTENSION

EXHAUST PIPE - turbocharged models, muffler for turbocharged tractors

1шт.
