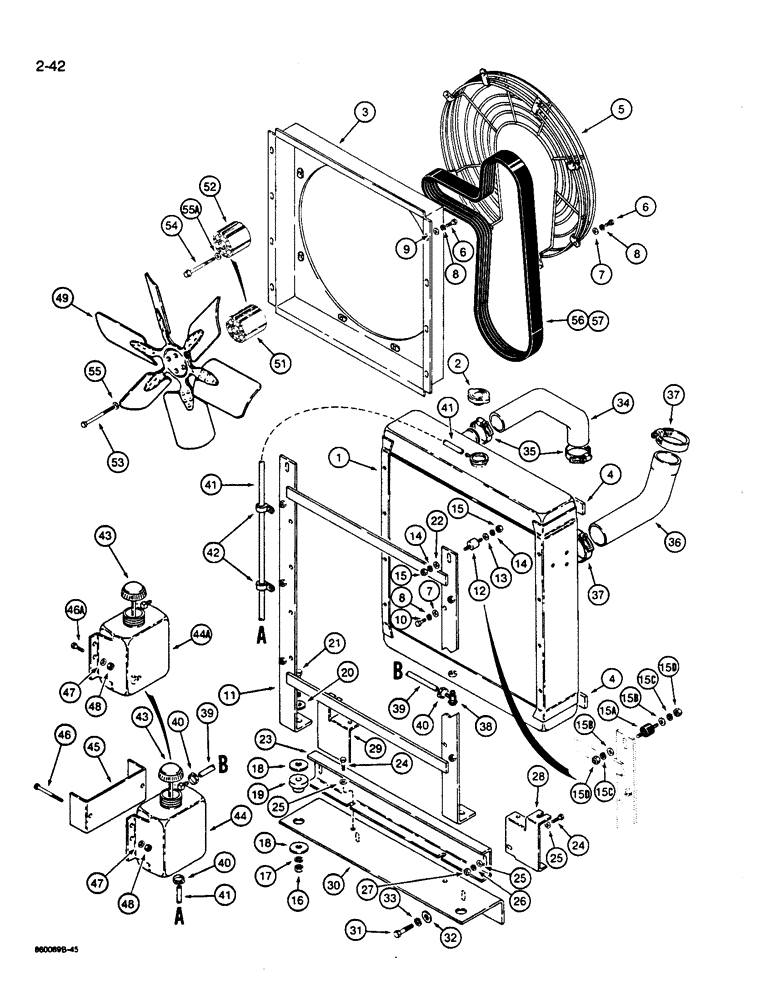

Запчасти Case W14B (2-42) - RADIATOR, FAN, AND FAN BELT (02) - ENGINE

1

A172534

RADIATOR

- cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A184076

SHROUD

- fan

1шт.

4

L113512

SEAL

SEAL - fan shroud

2шт.

5

L116812

GUARD

- fan

1шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

16шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

8

892-1108

LOCK WASHER,M8

plated M8

24шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

11

L114557

SUPPORT

- radiator

1шт.

Ref #11A - L127163 Mount effective at S/N JAK0017960

1шт.

12

L11236

BOLT

BOLT - special, uses 5/16 inch mounting hardware, if used

2шт.

13

195-103

WASHER,5/16"

- flat, , plated, if used 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

4шт.

15a

L127163

BOLT

BOLT - special, uses 3/8 inch mounting hardware, if used

2шт.

15b

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used 3/8"

4шт.

15c

492-11038

LOCK WASHER,3/8"

if used 3/8"

4шт.

15d

425-106

NUT,3/8"-16, Cl 5

if used 3/8"-16, G5

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

195-2260

WASHER,5/8" x 2" x .095"

- flat, 1/2", special

4шт.

19

L46821

SHOCK ABSORBER

BUSHING - rubber, radiator mount

2шт.

20

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

21

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

22

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special, hardened, if used

2шт.

23

L113037

PLATE

BAFFLE - air, lower

1шт.

24

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

25

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

L113984

BAFFLE

- air, right-hand

1шт.

29

L113985

BAFFLE

- air, left-hand

1шт.

30

L113032

BRACKET

- radiator mounting

1шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", plated

2шт.

32

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

34

L112580

RADIATOR HOSE,44.50 mm ID x 301.60 mm, SAE 20R4 Class SC or D-1

- Upper, Formed 44.50 mm ID x 301.60 mm, SAE 20R4 Class SC or D-1

1шт.

35

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia

2шт.

36

L112579

RADIATOR HOSE

- Lower, 2-3/8" (60.5 mm) ID, Formed

1шт.

37

214-177

CLIP

CLAMP - adj, 2-1/4 - 3-1/8 inch dia

2шт.

38

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

39

REF

INSTRUCTION

HOSE - drain, 5/16" (8 mm) ID x 40" (1016 mm) long, cut from H424101 hose, see below

1шт.

40

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

3шт.

41

REF

INSTRUCTION

HOSE - drain, 5/16" (8 mm) ID x 50" (1270 mm) long, cut from H424101 hose, see below

1шт.

42

49768

CLIP

- hose

2шт.

43

A184079

CAP

- coolant recovery reservoir

1шт.

44

A184373

RESERVOIR

- coolant recovery, replaced by L127093, Ref. 44A

1шт.

44a

L127093

RESERVOIR

RESERVOIR - coolant recovery, mounted directly to radiator guard, Ref. 1 on Figure 9-30

1шт.

45

L113913

SPACER

- coolant recovery reservoir, used with A184373 reservoir, Ref. 44

1шт.

46

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, used with A184373 reservoir, Ref. 44

2шт.

46a

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, used with L127093 reservoir, Ref. 44A

2шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

48

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

49

A173550

FAN

- pusher

1шт.

50

A173554

FAN

- reversible, not shown, used on feedlot special

1шт.

50a

A173552

FAN

- puller, if used, not shown

1шт.

51

A184524

SPACER

- fan, used with pusher fan only, if used

1шт.

52

A173332

SPACER

- fan, used with reversible fan only, for feedlot special, if used

1шт.

52a

A173334

SPACER

- fan, used with puller fan only, if used, not shown

1шт.

53

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 mm - 1.5 x 110 mm (10.9), Used with pusher fan

4шт.

54

L127752

FLANGE BOLT

BOLT - flange head, special, used with reversible fan

4шт.

54a

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9, plated, Used with puller fan, If used, Not shown

4шт.

55

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32 inch, hardened, used with pusher fan bolt, Ref. 53

4шт.

55a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, used with reversible fan bolt, Ref. 54

4шт.

56

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan and 40 Amp Alternator, if Used 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

57

J903093

V-BELT,3.56 mm W x 1473.20 mm L, 8 Ribs

Fan and 65 Amp Alternator, if Used 3.56 mm W x 1473.20 mm L, 8 Ribs

1шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

- Bulk 7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.
