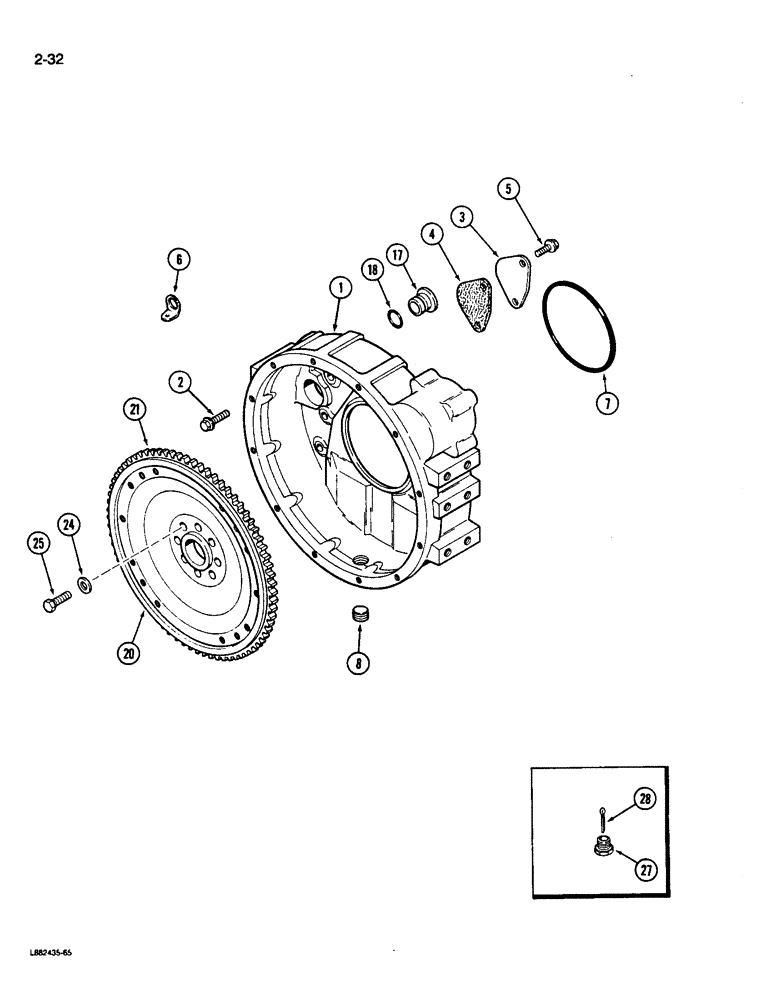

Запчасти Case W14B (2-32) - FLYWHEEL AND HOUSING, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J903282

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 40 mm (Replaces J910540)

8шт.

3

J908095

PLATE

- cover

1шт.

4

J908096

GASKET

- cover plate

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

6

A77531

CLIP

- retaining (If Equipped)

1шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

8

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - housing drain

1шт.

17

J910248

PLUG

- housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

20

J908832

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm - 1.25 x 32 mm

8шт.

26

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

27

L113178

PLUG

BUSHING - reducer (If Equipped)

1шт.

28

132-118

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), , If equipped 7/32" x 1"

1шт.
