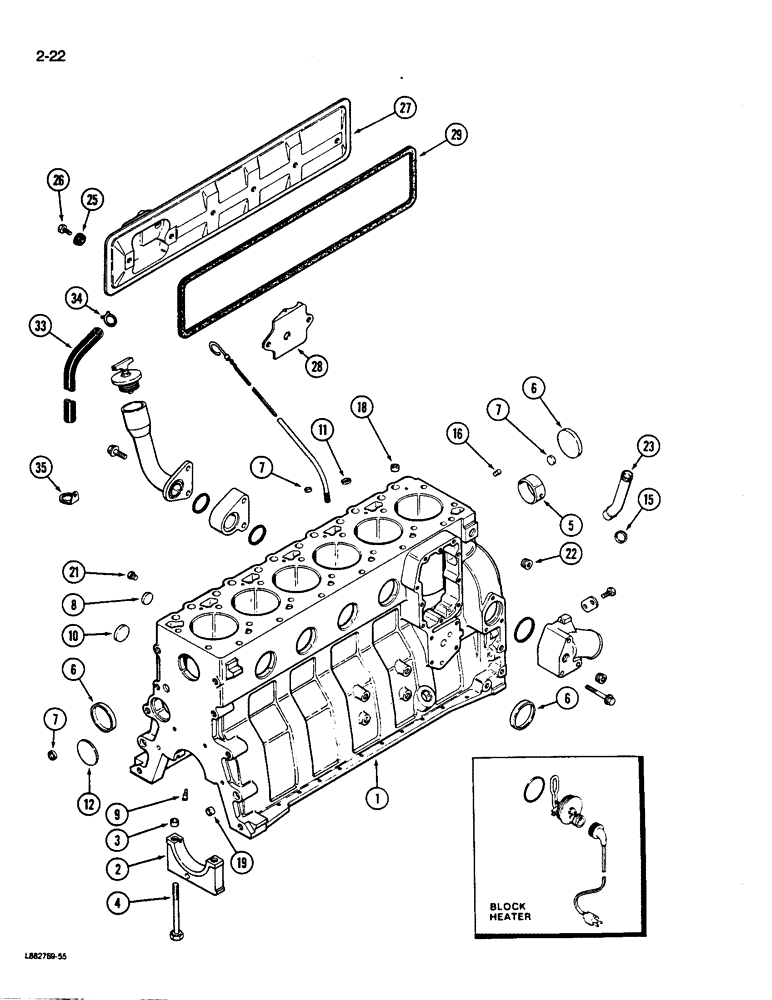

Запчасти Case W14B (2-22) - CYLINDER BLOCK, 6T-590 ENGINE (TURBOCHARGED) (02) - ENGINE

1989039C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe), for service order 1989096C2 basic engine assembly listed below

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic (Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors & lines, front crank pulley

1шт.

1989096C3R

REMAN-BASIC ENGINE

W14B

1шт.

1989096C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

AR77762

ENGINE

Block Assembly - engine short, remanufactured

1шт.

AC77762

CORE-ENGINE

Return Part Number - engine short block (Use this number to return block core for credit)

1шт.

A77762

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Replaces J910510) (Order block and J920399 kit), Includes: Ref. 2 - 8

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Reman For New PN J933183

1шт.

JC933183

CORE-SHORT ENGINE

Return Part Number

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Replaces J905810) (Order block and J920399 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-26)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm O.D.

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J920399

PACKAGE, REPAIR

KIT - block hardware (Replaces J905813), Includes: Ref. 9 - 22

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling (Replaces J901020)

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm O.D.

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 16 mm (Replaces J900629)

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J907617

GASKET

GASKET - tappet cover (Replaces J904776)

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining

1шт.
