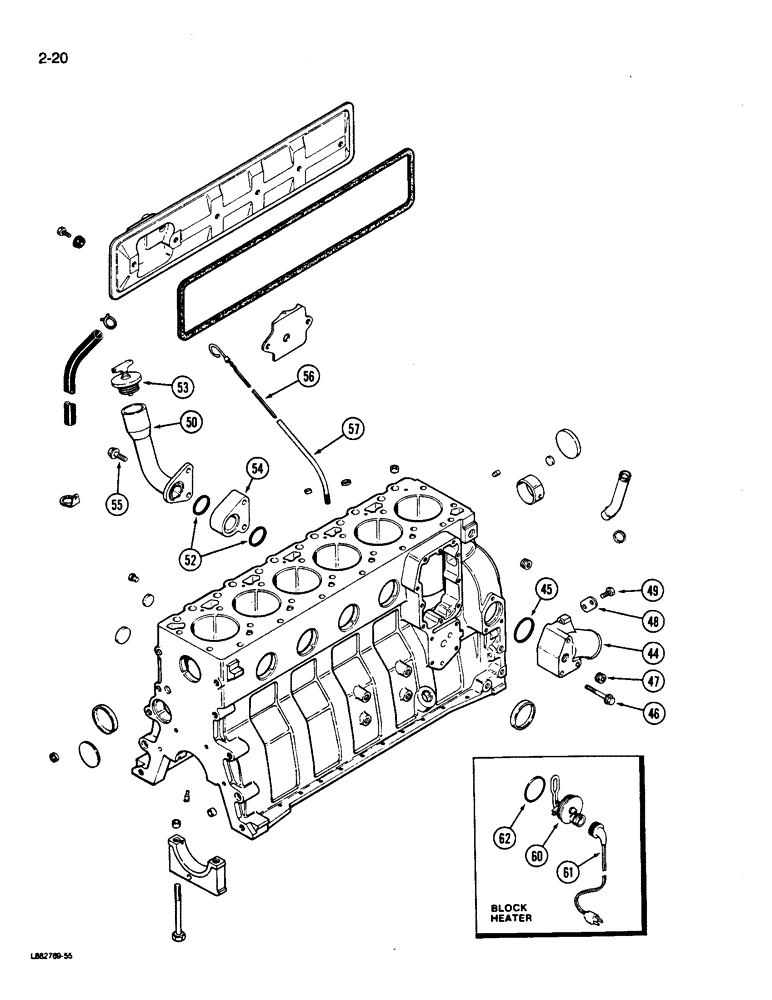

Запчасти Case W14B (2-20) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED), BLOCK (02) - ENGINE

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 75 mm, Grade 10.9

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting (If Equipped)

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

1шт.

50

J905440

TUBE

- fill, oil

1шт.

52

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

RING - sealing

2шт.

53

L115504

CAP

- filler tube

1шт.

54

J904693

SPACER

- oil filler tube connector

1шт.

#54 - has on W14 air compressor drain line on back side

1шт.

55

J905372

FLANGE BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - flanged hex, 12 mm - 1.75 x 60 mm

2шт.

56

J905784

DIPSTICK

- oil

1шт.

57

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

- oil dipstick

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 60 - 62

1шт.

60

J916127

RESISTOR

HEATER - engine block (Order A77634 kit)

1шт.

61

J905113

CABLE

- engine block heater

1шт.

62

J910517

O-RING

- heater sealing, block heater

1шт.
