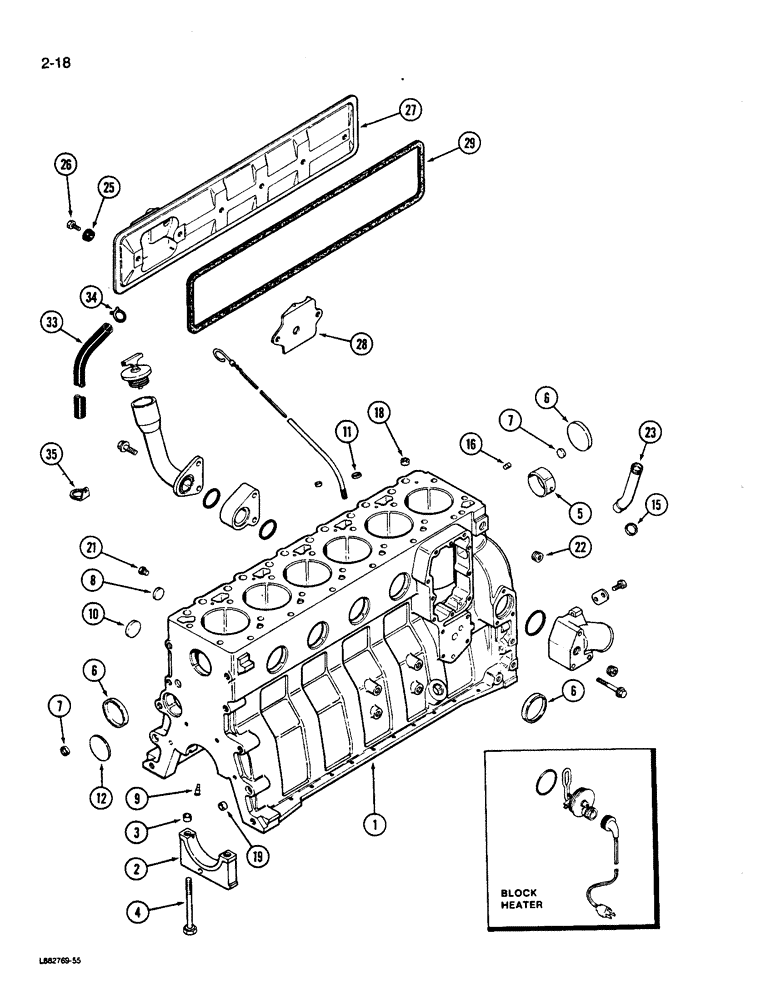

Запчасти Case W14B (2-18) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED) (02) - ENGINE

1989095C2

BASIC ENGINE

ENGINE ASSY - 6-590, basic (Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel inection pump, injectors & lines, front crank pulley

1шт.

1989095C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1989095C2C

CORE-ENGINE

Return Part Number

1шт.

1989095C3R

REMAN-BASIC ENGINE

W14B, 6-590 Nat. Asp.,Replacing P/N 1989095C2R

1шт.

1989095C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J905811

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J920399 hardware kit), Includes: Ref. 2 - 8

1шт.

JR905811

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Short, Remanufactured

1шт.

JC905811

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Number to Return Block Core for Credit)

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

A77761

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Replaces J905811) (Order block and J920399 kit), Includes: Ref. 2 - 8

1шт.

AR77761

SKELETON ENGINE

Block Assembly, Short, Remanufactured

1шт.

AC77761

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Part Number To Return Block Core For Credit)

1шт.

1989038C2R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

6-590C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Replaces J905810) (Order block and J920399 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-26)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm O.D.

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware (Replaces J905813), Includes: Ref. 9 - 22

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling (Replaces J901020)

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm O.D.

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J907617

GASKET

GASKET - tappet cover (Replaces J904776)

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining

1шт.
