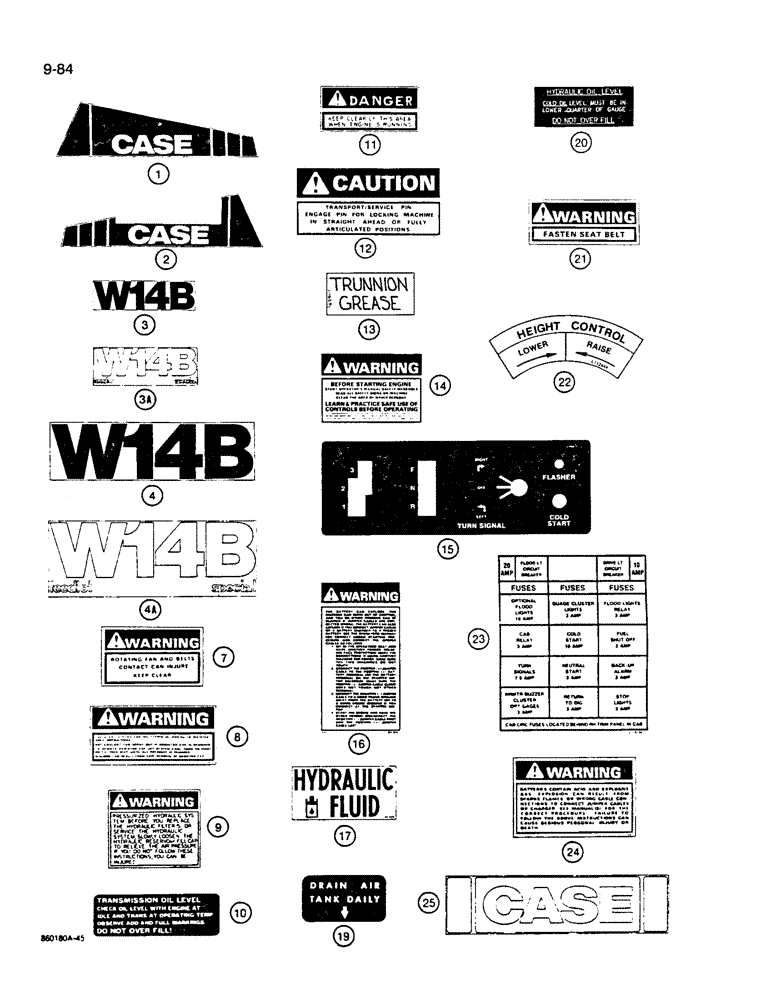

Запчасти Case W14B (9-84) - DECALS (09) - CHASSIS/ATTACHMENTS

L36283

KIT

- decal, W14B Loader, Includes: Ref. 1 - 25

1шт.

L36302

KIT

- decal, W14B Feedlot Special Loader, Includes: Ref. 1 - 25

1шт.

1

L116893

DECAL

- Case, left-hand, hood

1шт.

2

L116894

DECAL

- Case, right-hand, hood

1шт.

3

L114963

DECAL

- W14B, rear, part of L36283 kit only

2шт.

3a

L117111

DECAL

- W14B Feedlot Special, rear, part of L36302 kit only

2шт.

4

L114964

DECAL

- W14B, front, part of L36283 kit only

1шт.

4a

L117110

DECAL

- W14B Feedlot Special, front, part of L36302 kit only

1шт.

7

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

8

321-6672

DECAL

- Warning, check service cooling system

1шт.

9

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

10

321-1980

DECAL

- transmission oil level

1шт.

11

321-3205

DECAL

- Danger, keep clear of this area when engine is running

2шт.

12

321-3927

DECAL

- Caution, transport/service pin

1шт.

13

L116271

DECAL

- trunnion grease

1шт.

14

321-3705

DECAL

- Warning, before starting engine

1шт.

15

L116817

DECAL

- transmission control pattern/flasher lamps

1шт.

16

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

17

321-6376

DECAL

- hydraulic fluid

1шт.

19

321-1077

DECAL

- drain tank daily

1шт.

20

L117520

DECAL

- hydraulic oil level

1шт.

21

321-3060

DECAL

- Warning, fasten seat belt

1шт.

22

L112444

DECAL

- height control

1шт.

23

L115759

DECAL

- fuses

1шт.

24

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

25

L111858

DECAL

- CASE, rear

1шт.
