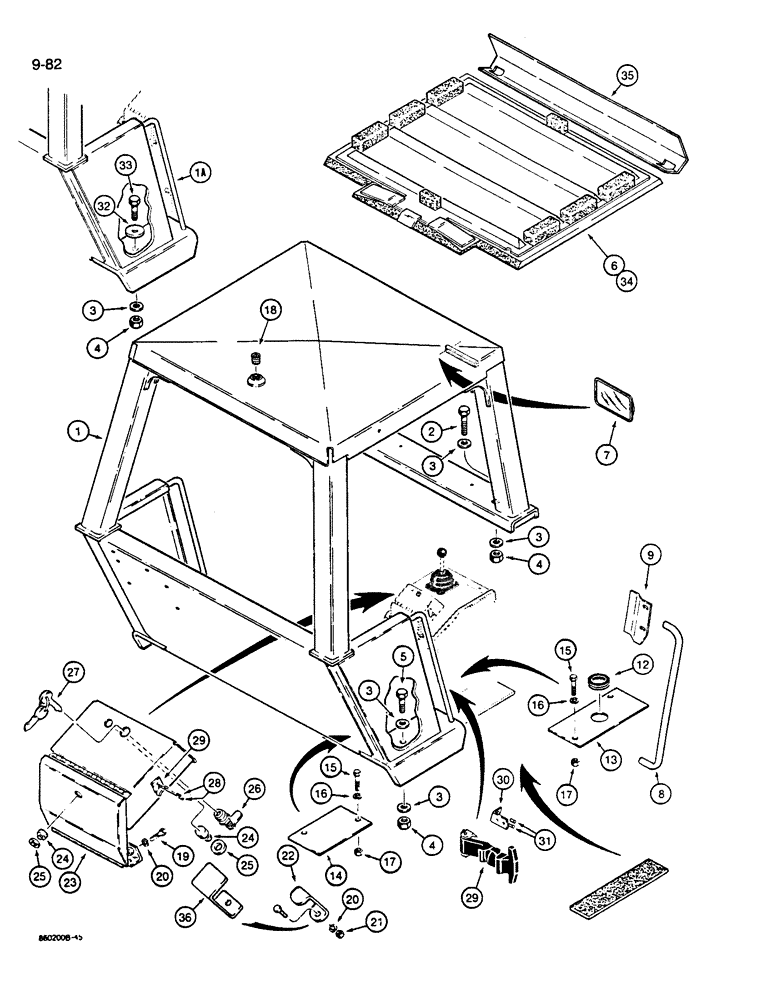

Запчасти Case W14B (9-82) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

L115081

CANOPY - ROPS, no longer available, order L118291 canopy, Ref. 1A

1шт.

1a

L118291

ROPS

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4", grade 8

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1", hardened

6-8шт.

4

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

4шт.

5

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

- hex head, 1" - 8 NC x 3", grade 8, used with L115081 canopy only

2шт.

6

L114575

ROOF

HEADLINER - canopy, used with L115081 canopy, no longer available, order L123407 headliner and (2) L124297 retainers below

1шт.

7

L74714

MIRROR

- rear view, includes hardware

1шт.

8

L109249

HANDLE

HANDRAIL -, Serial Range: welded-canopy

2шт.

9

L113399

SUPPORT

MOUNT - instrument panel, right-hand, canopy

1шт.

10

L113400

SUPPORT

MOUNT - instrument panel, left-hand, canopy, not shown

1шт.

11

D55216

PAD,2" x 9"

PAD - nonskid, floor plates

3шт.

12

D73137

GROMMET

- wire harness, right-hand floor plate

1шт.

13

L116726

PLATE

- cover, right-hand floor plate

1шт.

14

L116727

PLATE

- cover, left-hand floor plate

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1" NPT

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", zinc plated

3шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, zinc plated

1шт.

22

L61208

LATCH

- console, if used

1шт.

23

L118403

COVER ASSY

COVER - console

1шт.

24

L60224

BUMPER

- cover

2шт.

25

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

L114879

LOCK ASSY

LOCK - includes keys, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

LOCK - without keys

1шт.

27

D83205

KEY

- set of two

1шт.

28

151-526

RIVET,Pop, 1/8" x .337"

8шт.

29

L55329

CATCH

LATCH - cover

1шт.

30

L118472

BRACKET

- cover catch mounting

1шт.

31

151-544

RIVET,Pop, 3/16" x .515"

POP RIVET - 3/16"

2шт.

32

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

- special, used with L118291 canopy only

2шт.

33

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex head, 1" - 8 NC x 3-1/2", used with L118291 canopy only

2шт.

34

L124307

ROOF

HEADLINER - canopy, used with L118291 canopy only

1шт.

35

L124297

RETAINER

- headliner, used with L118291 canopy only

2шт.

36

L118528

LATCH

- console

1шт.
