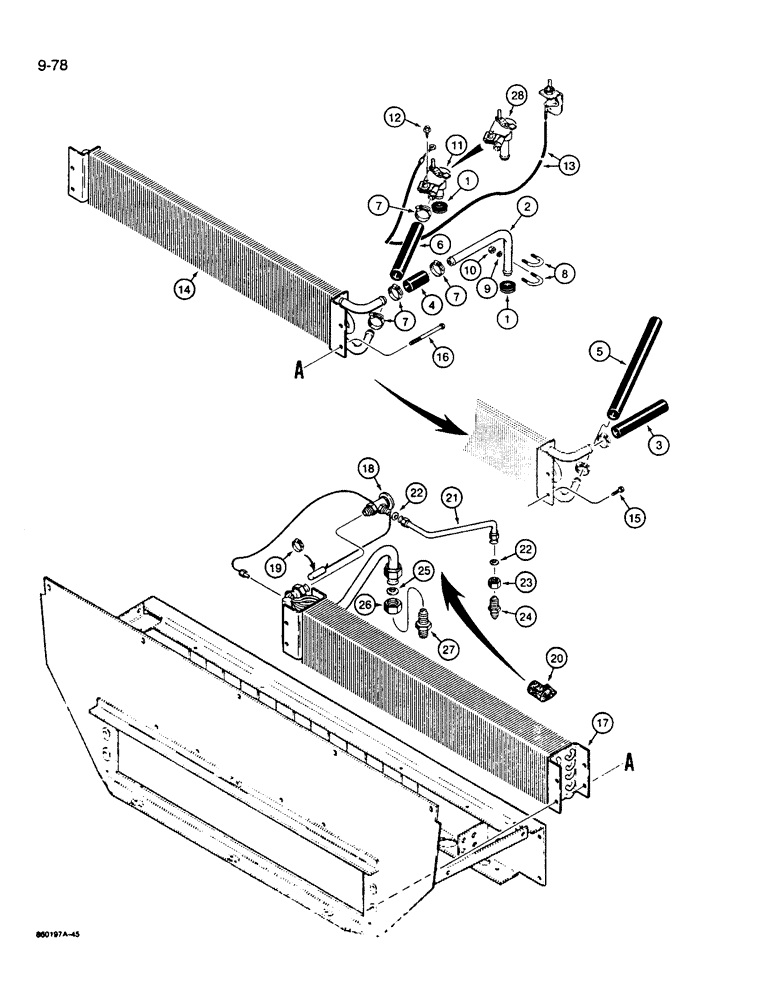

Запчасти Case W14B (9-78) - HEATING AND AIR CONDITIONING CORES AND CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

A37563

GROMMET

- heating tubes at cab floor plate

2шт.

2

R53523

HEATER TUBE,15.88 mm OD x 192, 115 mm L

TUBE - heating return

1шт.

3

REF

INSTRUCTION

HOSE - heater core, upper, 5-5/16" (135 mm) long, cut from 97252C1 bulk, used on models with heating only

1шт.

4

REF

INSTRUCTION

HOSE - heater core, upper, 2-2/3" (70 mm) long, cut from 97252C1 bulk, used on models with heating and air conditioning

1шт.

5

REF

INSTRUCTION

HOSE - heater core, lower, 9-27/32" (250 mm) long, cut from 97252C1 bulk, used on models with heating only

1шт.

6

REF

INSTRUCTION

HOSE - heater core, lower, 5-5/16" (135 mm) long, cut from 97252C1 bulk, used on models with heating and air conditioning

1шт.

7

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

8

L78949

U-BOLT

- heating return tube

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

F63865

VALVE

- flow control, heating, has 1-1/2" long tube, if used

1шт.

12

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated

1шт.

13

L108188

CABLE

- heating control

1шт.

14

L106940

RADIATOR

CORE - heater

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Used on models with heating only Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

16

113-50

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

- hex head, 1/4" - 20 NC x 3-1/2", plated, used on models with heating and air conditioning

4шт.

17

L106912

EVAPORATOR

CORE - evaporator, air conditioning

1шт.

18

F64389

VALVE

- expansion, air conditioning

1шт.

19

98157C1

CLAMP

- expansion valve sensor

1шт.

20

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

21

L107292

TUBE,0.375" OD

- from expansion valve

1шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

23

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8" - 18 NF, plated

1шт.

24

L107840

FITTING

ADAPTER - bulkhead, expansion valve tube

1шт.

25

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" tube O.D.

1шт.

26

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

27

L107841

FITTING

ADAPTER - bulkhead, evaporator core tube

1шт.

28

R54333

VALVE

- flow control, heater, has 3' long tube, if used

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
