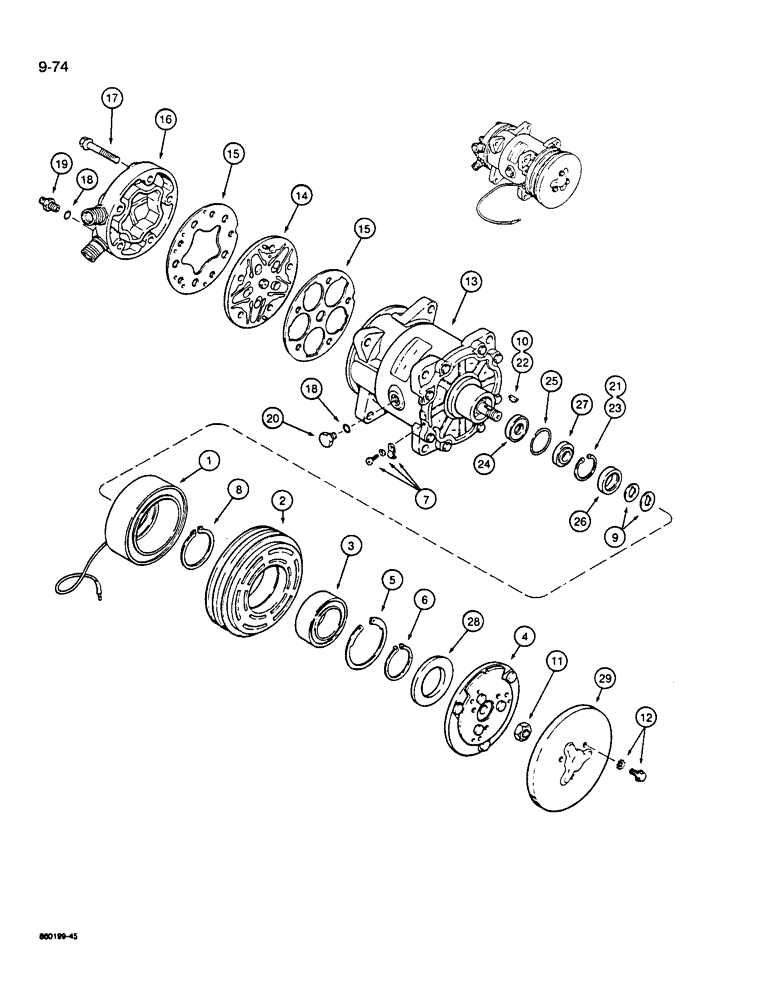

Запчасти Case W14B (9-74) - AIR CONDITIONING COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A177564
COMPRESSOR
ASSEMBLY - air conditioning, Includes: Ref. 1 - 29
1шт.
A49705
CLUTCH
ASSEMBLY - compressor, Includes: Ref. 1 - 12
1шт.
1
A49704
COIL
- 24 volt
1шт.
2
A49660
PULLEY ASSY.
PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3 - 5
1шт.
3
A49663
BALL BEARING,40 mm ID x 62 mm OD x 24 mm
BEARING - pulley
1шт.
4
A49677
PLATE
- front
1шт.
5
NSS
NOT SOLD SEPARAT
SNAP RING - pulley
1шт.
A49673
KIT
ACCESSORY KIT - clutch, Includes: Ref. 6 - 12
1шт.
6
NSS
NOT SOLD SEPARAT
SNAP RING - clutch
1шт.
7
NSS
NOT SOLD SEPARAT
CLAMP - lead wire, includes hardware which is not serviced separately
1шт.
8
NSS
NOT SOLD SEPARAT
SNAP RING - clutch
1шт.
9
NSS
NOT SOLD SEPARAT
SHIM - clutch
1шт.
10
NSS
NOT SOLD SEPARAT
KEY - clutch drive
1шт.
11
NSS
NOT SOLD SEPARAT
NUT - retainer
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW - includes lock washer, retainer
1шт.
A49672
COMPRESSOR
ASSEMBLY - field, Includes: Ref. 13 - 27
1шт.
13
NSS
NOT SOLD SEPARAT
BLOCK ASSEMBLY - compressor, component parts not serviced separately
1шт.
14
A49662
PLATE
ASSEMBLY - valve, Includes: Ref. 15
1шт.
15
A49668
GASKET KIT
- includes two valve plates
1шт.
16
A49661
HEAD (CYLINDER)
HEAD - cylinder
1шт.
17
A49669
SCREW,Cylinder
BOLT - hex flange head
5шт.
18
A49666
O-RING
- rubber
3шт.
19
A49670
PORT
FITTING - service port
2шт.
20
A49667
PLUG
- oil, filler
1шт.
21
A49664
CIRCLIP
SNAP RING - seal seat
1шт.
22
A49671
KEY
- shaft, compressor
1шт.
A49665
SEAL KIT
SEAL KIT - compressor, Includes: Ref. 23 - 26
1шт.
23
A49664
CIRCLIP
SNAP RING - compressor
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - housing
1шт.
26
NSS
NOT SOLD SEPARAT
RING - felt
1шт.
27
NSS
NOT SOLD SEPARAT
SEAT - seal, shaft
1шт.
28
A49674
BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm
COVER - dust, bearing
1шт.
29
A49675
COVER
- dust, clutch
1шт.
Выбрано товаров: 34
