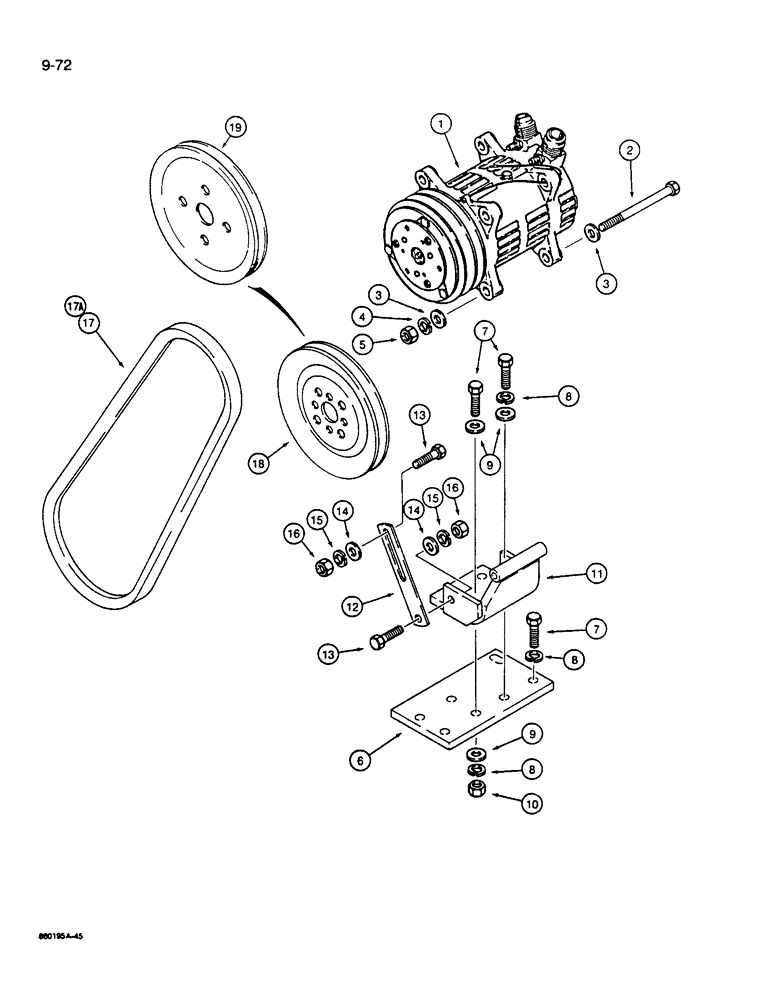

Запчасти Case W14B (9-72) - AIR CONDITIONING COMPRESSOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A177564

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-74

1шт.

2

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex head, 10 mm - 1.5 x 130 mm (8.8), plated

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

5

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

1шт.

6

A177345

PLATE

- compressor mounting

1шт.

7

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated

5шт.

8

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

5шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

10

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

2шт.

11

A177341

BRACKET

- compressor mounting

1шт.

12

K207316

STRAP

- compressor adjusting

2шт.

13

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated

4шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

15

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

16

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

4шт.

17

L110265

BELT,46.00" L

Compressor drive, Used with L118171 pulley, Ref. 18 46.00" L

1шт.

17a

A75577

V-BELT,0.50" W

Compressor Drive, Used with A189155 Pulley, Ref. 19 0.50" W

1шт.

18

L118171

PULLEY

- compressor drive, no longer available, replaced with A189155 pulley (Ref. 19) and A75577 belt (Ref. 17A)

1шт.

19

A189155

PULLEY

- compressor drive

1шт.
