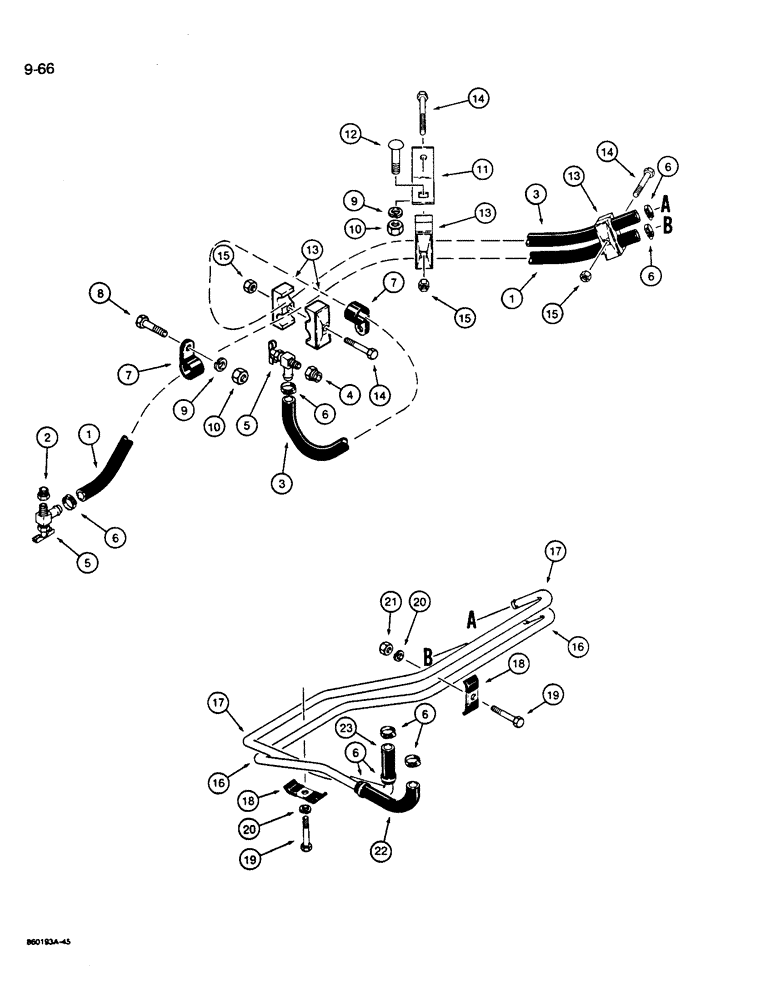

Запчасти Case W14B (9-66) - HEATING LINES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOSE - 5/8" (16 mm) x 87" (2210 mm) long, heating return to water pump, suction side, cut from 97252C1, see below

1шт.

2

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT, at water pump

1шт.

3

REF

INSTRUCTION

HOSE - 5/8" (16 mm) x 91" (2311 mm) long, heating supply from engine water manifold, cut from 97252C1, see below

1шт.

4

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

at engine manifold Hex, 3/4" x 3/8" NPT

1шт.

5

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heating lines

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable, heating hoses

8шт.

7

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-style, hoses

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

1шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

L116227

BRACKET

- clamp mounting

1шт.

12

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

13

L107932

CLAMP

- double, includes both plastic halves and top steel plate, which are not serviced separately

3шт.

14

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 2-1/2", zinc plated

3шт.

15

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

3шт.

16

L117180

HEATER TUBE,15.87 mm OD

TUBE - heating return, lower

1шт.

17

L117179

HEATER TUBE,15.87 mm OD

TUBE - heating supply, upper

1шт.

18

D33316

CLAMP

- heating tubes

2шт.

19

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

1шт.

22

L79703

HOSE

- bent, heating return line at cab floor

1шт.

23

REF

INSTRUCTION

HOSE - straight, to heating flow control valve, supply line, 2" (51 mm) long, cut from 97252C1, see below

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
