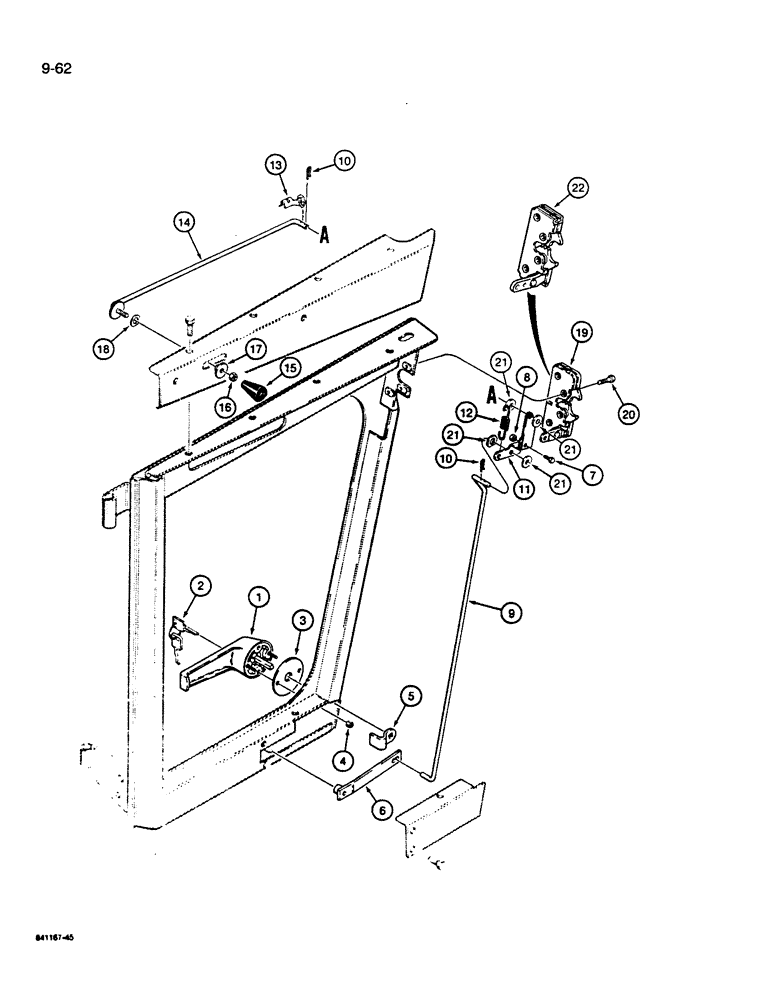

Запчасти Case W14B (9-62) - CAB DOOR LATCH PARTS (09) - CHASSIS/ATTACHMENTS

1

F66157

HANDLE

- door, outer, service replacement, cut shaft at outer, Serial Range: notch-fit

1шт.

2

A77313

SET OF 2 KEYS

KEY - set of two, same as ignition key

1шт.

3

F64342

GASKET,1.6mm Thk

- door handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F45031

LEVER

BRACKET - door handle shaft

1шт.

6

F96906

LEVER

- door handle

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4" - 20 NC, plated

1шт.

9

F45035

ROD

- vertical, handle to latch release lever

1шт.

10

136-155

COTTER PIN,Int, 7/64" x .051"

HAIR PIN - 7/64" x 3/4", rod to lever

4шт.

11

F96859

LEVER

- latch release

1шт.

12

F45162

SPRING

- latch release lever

1шт.

13

F43350

CLIP

- retainer, horizontal latch release rod, if used

1шт.

14

F96789

ROD

- latch release, horizontal

1шт.

15

F64341

KNOB

- door latch release, inside

1шт.

16

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4" - 20 NC, plated

1шт.

17

F64340

WASHER

- nylon

1шт.

18

F64384

WASHER

- nylon, knob

1шт.

19

F44925

LATCH

- door, no longer available, order item 22, R55002 latch

1шт.

20

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

21

F64384

WASHER

- nylon, latch release lever

4шт.

22

R55002

LATCH

- door

1шт.
