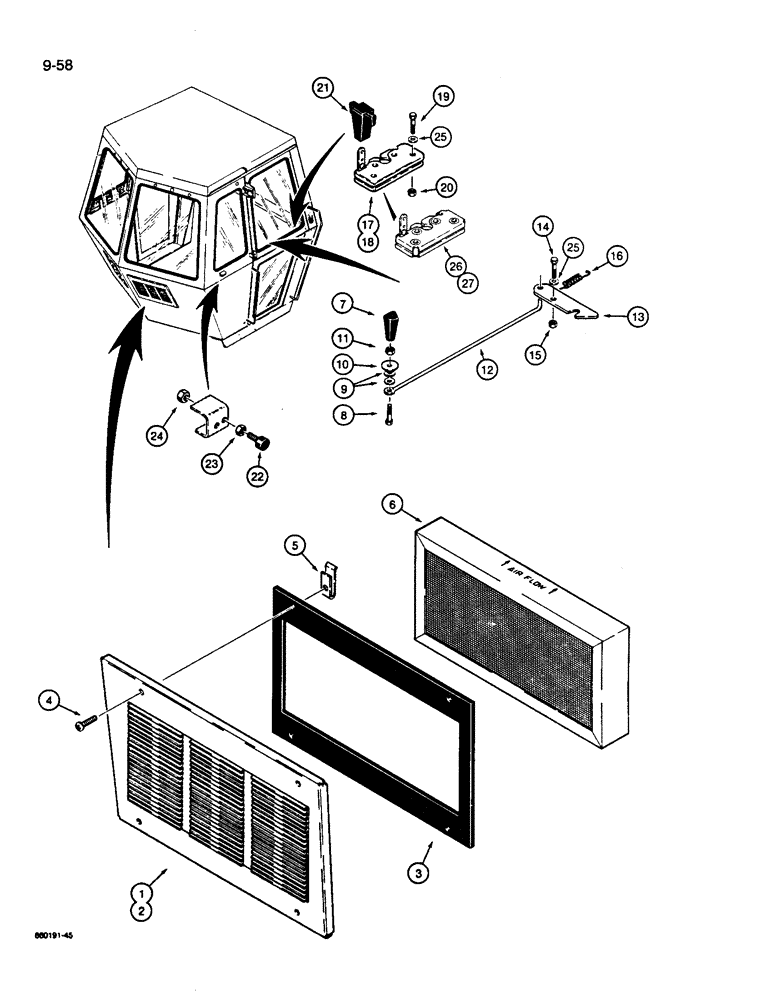

Запчасти Case W14B (9-58) - CAB FILTERS AND WINDOW LATCHES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
F96794
PLATE
COVER - filter, with louvers, right-hand
1шт.
2
F96795
PLATE
COVER - filter, with louvers, left-hand
1шт.
3
F45060
SEAL
SEAL - filter
2шт.
4
182-509
SCREW,Cross Pan Hd, 5/16" - 18 x 1"
MACHINE SCREW - Phillips head, 5/16" - 18 NC x 1", plated
8шт.
5
131-639
SPRING NUT,U, Rtnr, 5/16" - 18
- U-type, 5/16" - 18 NC
8шт.
6
D80562
AIR CLEANER
FILTER - air
2шт.
7
F64341
KNOB
- window latch release
2шт.
8
123-4
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5, Full Thd
- hex head, full thread, 1/4" - 20 NC x 1-1/4", plated
2шт.
9
F64384
WASHER
- nylon, knob
4шт.
10
F64340
WASHER
- special, shoulder
2шт.
12
F45134
STEM
ROD - window latch release
2шт.
13
F45352
PLATE
LATCH - window retaining, open position
2шт.
14
413-418
BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5
- hex head, 1/4" - 20 NC x 1-1/8", zinc plated
2шт.
16
F45162
SPRING
- window latch release
2шт.
17
F44925
LATCH
- window, closed position, left-hand, not shown, no longer available, order Ref. 26, R55003 latch
1шт.
18
F45136
LATCH ASSY.
LATCH - window, closed position, right-hand, no longer available, order Ref. 27, R55002 latch
1шт.
19
413-418
BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5
- hex head, 1/4" - 20 NC x 1-1/8", zinc plated (replaces 113-418)
8шт.
21
F64911
HANDLE
KNOB - window latch
2шт.
22
F44935
BUMPER
- window, open position
2шт.
23
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
24
231-1445
NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16" - 18 NC, plated
2шт.
25
195-102
WASHER,1/4"
- flat, , plated 1/4"
10шт.
26
R55003
LATCH ASSY.
LATCH - window, closed position, left-hand, shown
1шт.
27
R55002
LATCH
- window, closed position, right-hand not shown
1шт.
Выбрано товаров: 27
