Запчасти Case W14B (9-56) - CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

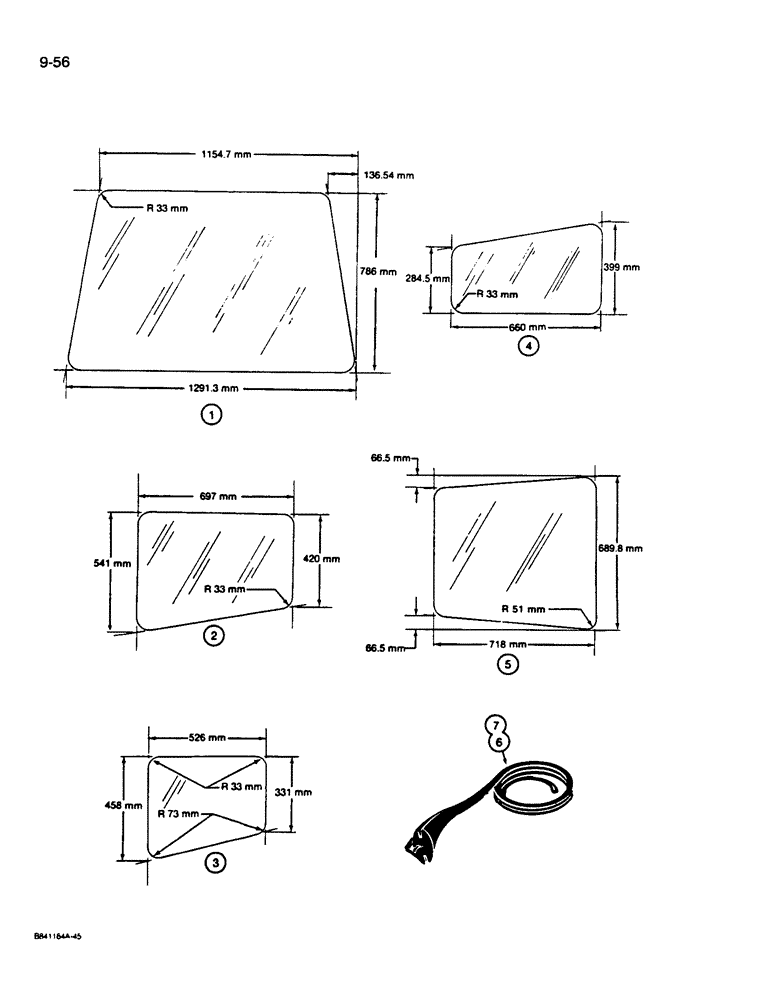

Схема запчастей Case W14B - (9-56) - CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GLASS - windshield

1шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Shart edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

2

REF

INSTRUCTION

GLASS - side, front, upper

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Shart edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

REF

INSTRUCTION

GLASS - side, front, lower

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Shart edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

4

REF

INSTRUCTION

GLASS - side, rear

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Shart edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

REF

INSTRUCTION

GLASS - rear

2шт.

All glass to be obtained from local source and must be 5.60 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Shart edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

6

A42677

MOLDING

SEAL - used around all glass except windshield glass, 15.24 m long

1шт.

7

F43628

MOLDING

SEAL - used around windshield glass only, 30.48 m long

1шт.

Выбрано товаров: 12
