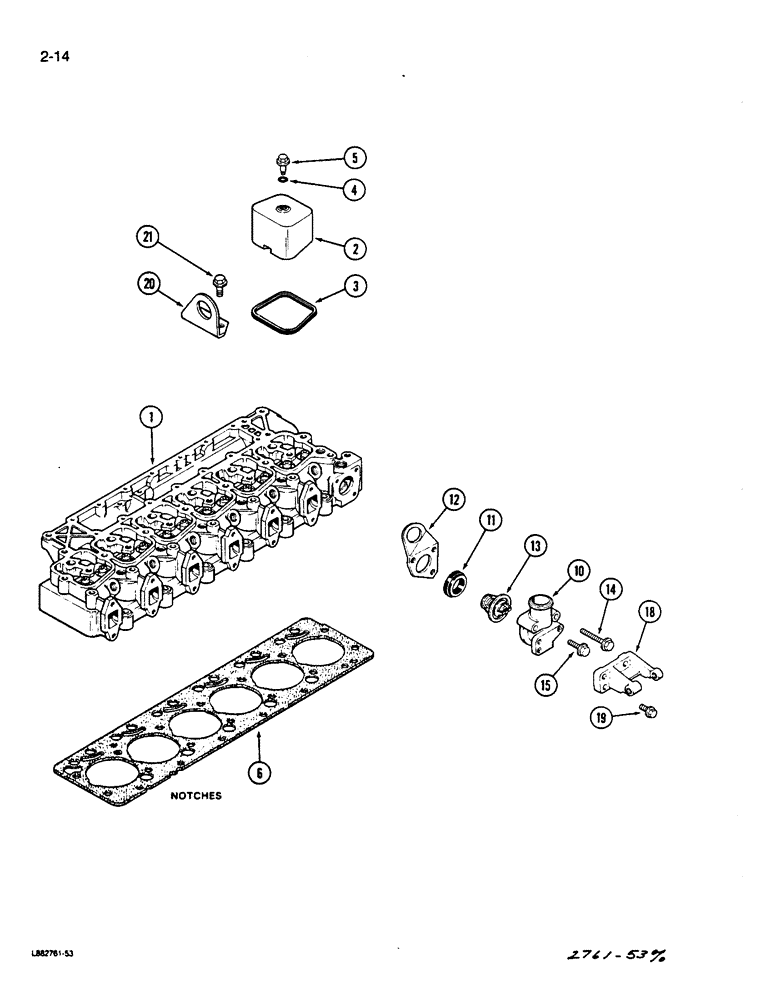

Запчасти Case W14B (2-14) - CYLINDER HEAD COVERS AND GASKET, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-16)

1шт.

2

J902604

COVER

- rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837)

6шт.

5

J907049

BOLT,Hex

- special, 8 mm - 1.25 x 21.25 mm

6шт.

6

J918305

GASKET

- head, standard (1-Notch) (Replaces J907057)

1шт.

6

J918306

GASKET

- head, 0.25 mm thicker (2 Notches) (Replaces J907058)

1шт.

6

J918307

GASKET

- head, 0.50 mm thicker (3 Notches) (Replaces J907059)

1шт.

10

J914409

HOUSING

- thermostat

1шт.

11

J920020

GASKET

- housing (Replaces J903301), thermostat and housing

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

A77736

THERMOSTAT

KIT - water, 95 degree C (Replaces J917324), thermostat and housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 70 mm (Replaces J903096), Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 35 mm (Replaces J900632), Thermostat and housing

1шт.

18

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

19

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- flanged, 8 x 25 mm, thermostat and housing

3шт.

20

J908118

BRACKET

- lifting, rear, thermostat and housing

1шт.

21

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9, thermostat and housing

2шт.
