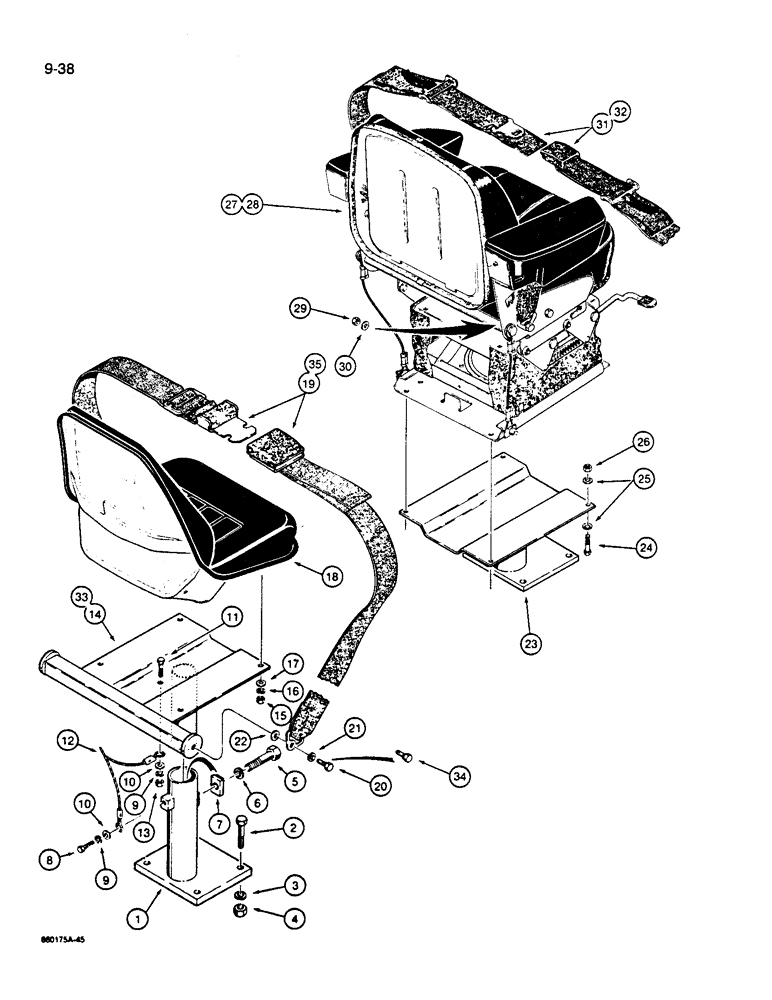

Запчасти Case W14B (9-38) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

L61338

SUPPORT

- seat, lower

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

L59950

NUT

- special

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

495-21044

WASHER,3/8"

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

1шт.

12

L110228

CABLE

- wire, seat stabilizer

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

L61352

SUPPORT

- seat, upper, uses Refs. 20, 21, and 22 hardware

1шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

18

L108783

SEAT

ASSEMBLY - standard, with non-retractable seat belts, parts list Figure 9-42

1шт.

19

L117002

SAFETY BELT

SAFETY BELT, Non retractable, 2" (51 mm) wide, If used

1шт.

For optional retractable seat belts used with standard and suspension seats, see Figure 9-40.

1шт.

20

113-2288

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", special, use with Ref. 14, L61352 support

2шт.

21

492-11038

LOCK WASHER,3/8"

use with Ref. 14, L61352 support 3/8"

2шт.

22

495-21044

WASHER,3/8"

Use with Ref. 14, L61352 support 3/8"

2шт.

23

L61337

SUPPORT

- seat, for suspension seat

1шт.

24

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

25

L105055

WASHER

- special

8шт.

26

129-524

NUT,3/8"-24, G8

4шт.

27

L101788

SEAT ASSY.

SEAT - suspension, vinyl, cab or canopy, parts list Figure 9-44 - 9-48

1шт.

28

L106683

SEAT

- suspension, cloth, cab only, parts list Figure 9-44 - 9-48

1шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

495-21044

WASHER,3/8"

2шт.

31

L109254

SAFETY BELT

SAFETY BELT, Retractable, Suspension seat, 2" (51 mm) wide, No longer available, Order Ref. 19, L117002 seat belt

1шт.

For optional retractable seat belts used with standard and suspension seats, see Figure 9-40.

1шт.

32

L60808

SAFETY BELT ,76.00 mm W

Retractable, Suspension seat, No longer available, Order Ref. 35, D85816 seat belt 76.00 mm W

1шт.

For optional retractable seat belts used with standard and suspension seats, see Figure 9-40.

1шт.

33

L126758

SUPPORT

- seat, upper, uses Ref. 34, (2) F42236 bolts

1шт.

34

F42236

STEP BOLT

SHOULDER BOLT - special, 7/16" - 20 NF x 1-1/4", use with Ref. 33, L126758 support

2шт.

35

D85816

SAFETY BELT

BELT - seat, non-retractable, 3" (76 mm) wide, if used

1шт.

For optional retractable seat belts used with standard and suspension seats, see Figure 9-40.

1шт.
