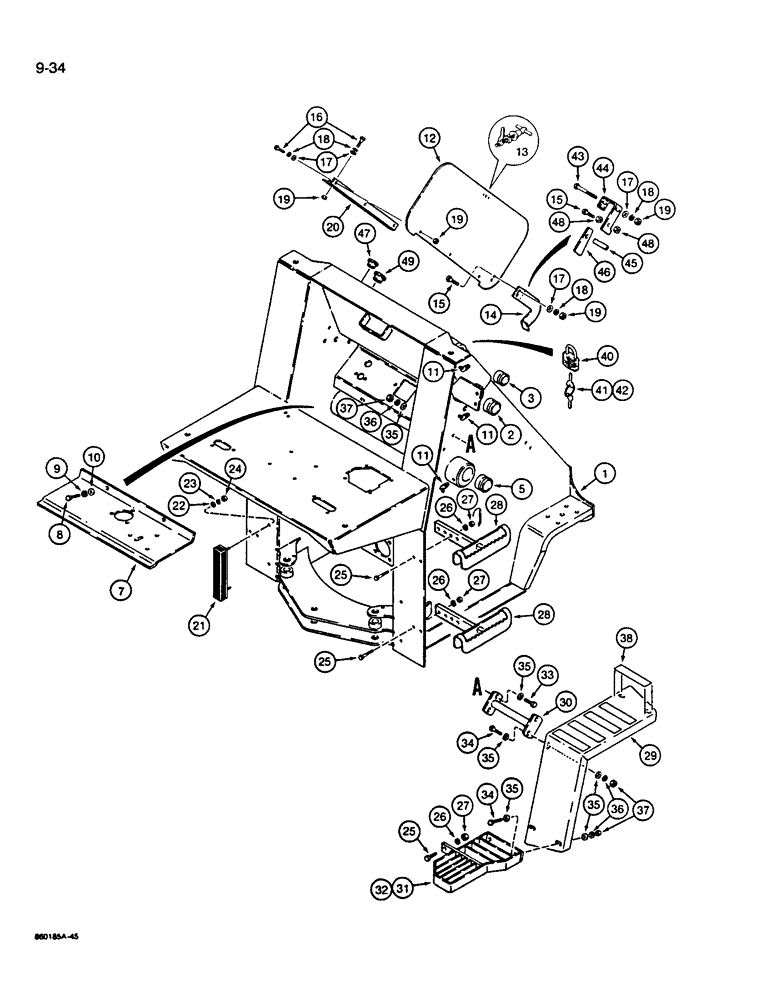

Запчасти Case W14B (9-34) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

L123663

CHASSIS

FRAME ASSEMBLY - front, for tractors with square rather than rectangular opening for steering gear, also order Ref. 10, L118281 bracket on figure 5-02, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - front, has rectangular opening for steering gear

1шт.

2

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift frame

2шт.

3

L61108

BUSHING

- pivot, bucket cylinder

2шт.

5

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- pivot, lift cylinder

2шт.

7

NSS

NOT SOLD SEPARAT

FLOOR - front frame

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

495-21044

WASHER,3/8"

2шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, special short, 1/8" NPT

6шт.

12

L113524

DOOR

- hydraulic access

1шт.

13

L48438

HANDLE

- door

1шт.

14

L61317

STOP

- door, no longer available, order one each of Refs. 43, 44, 45 and 46

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

1-2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

6шт.

17

495-21044

WASHER,3/8"

7шт.

18

492-11038

LOCK WASHER,3/8"

7шт.

19

425-106

NUT,3/8"-16, Cl 5

7шт.

20

L106790

HINGE

- access door

1шт.

21

L108504

BUMPER

- rubber, frame

2шт.

22

495-21044

WASHER,3/8"

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

28

L77602

STEP

- operator access, front frame

4шт.

29

L115247

FENDER ASSY.

FENDER - front frame

2шт.

30

L74731

SUPPORT

-, Serial Range: fender-frame

2шт.

31

L115279

STEP

- front frame, right-hand

1шт.

32

L115280

STEP

- front frame, left-hand, not shown

1шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

4шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

8шт.

35

495-21044

WASHER,3/8"

24шт.

36

492-11038

LOCK WASHER,3/8"

12шт.

37

425-106

NUT,3/8"-16, Cl 5

12шт.

38

D55216

PAD,2" x 9"

PAD - non skid

10шт.

39

L76805

STRIP

TAB - access door, if used, not shown

2шт.

40

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 41 and 42

1шт.

41

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

42

R29555

KEY

- for Master padlock only, if used

2шт.

43

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

44

L118254

BRACKET

- door latch

1шт.

45

L118253

SPACER

- door latch

1шт.

46

L118255

LATCH

- door

1шт.

47

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32"

2шт.

48

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8" - 16 NC, zinc plated

2шт.

49

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.
