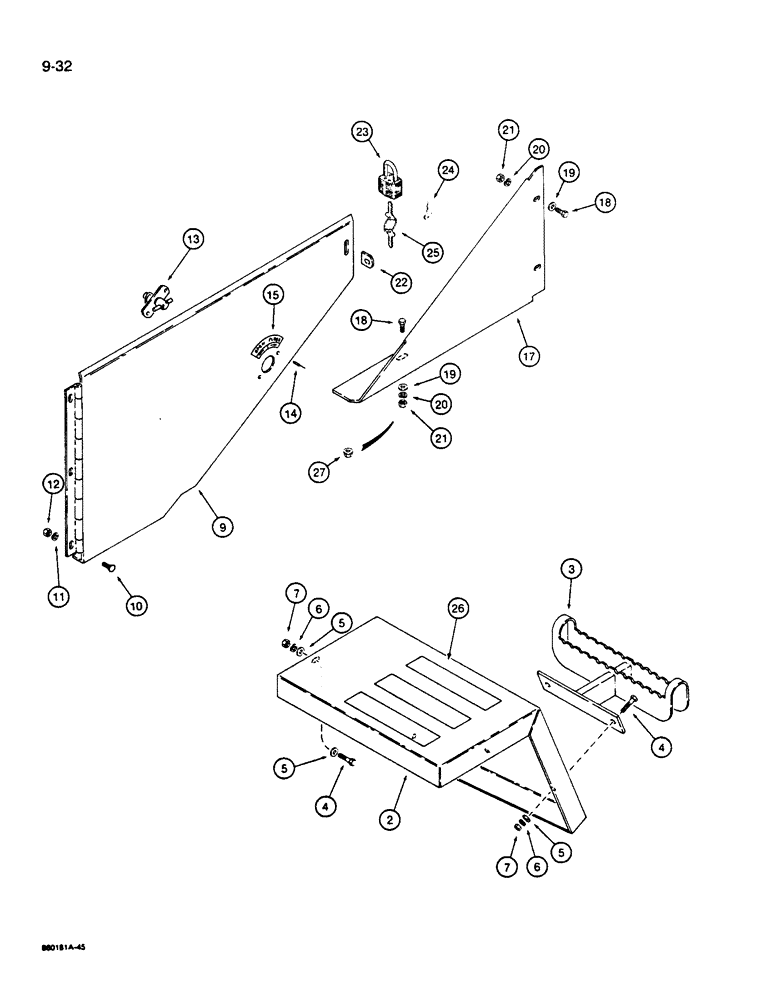

Запчасти Case W14B (9-32) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L115244

FENDER

- rear, left-hand, not shown

1шт.

2

L115243

FENDER ASSY.

FENDER - rear, right-hand

1шт.

3

L110240

STEP

- rear fender, right-hand

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

10шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

8

L115825

PANEL

- engine side, upper left-hand, not shown

1шт.

9

L115824

PANEL

- engine side, upper right-hand

1шт.

10

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

13

L102515

LATCH

- side panel

2шт.

14

151-558

RIVET,Pop, 3/16" x .450"

POP RIVET - latch

4шт.

15

L116272

DECAL

- panel latch position, if used

2шт.

16

L112411

PANEL

- engine side, lower left-hand, not shown

1шт.

17

L112410

PANEL

- engine side, lower right-hand

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

6шт.

19

495-21044

WASHER,3/8"

6шт.

20

492-11038

LOCK WASHER,3/8"

5-6шт.

21

425-106

NUT,3/8"-16, Cl 5

5-6шт.

22

L76805

STRIP

TAB - side panel lock, welded on, if used

2шт.

23

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 24 and 25

2шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

25

R29555

KEY

- for Master padlock only, if used

2шт.

26

D55216

PAD,2" x 9"

PAD - non skid

6шт.

27

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, flange type, special locking, 3/8" - 16 NC, use on right-hand side panel only

1шт.
