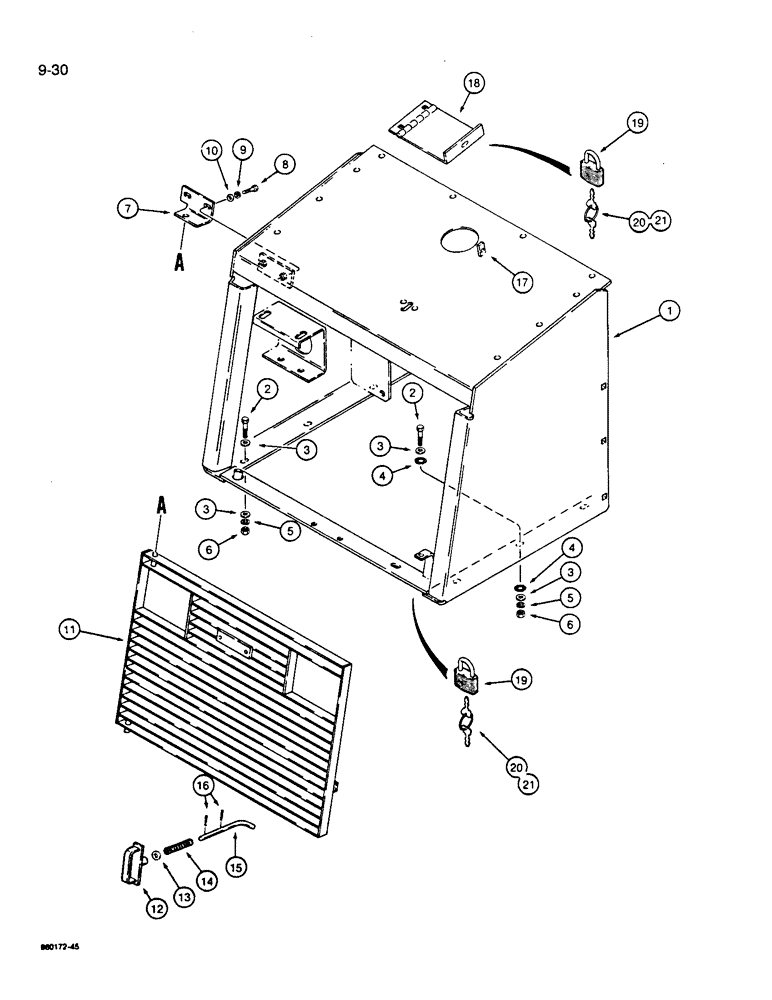

Запчасти Case W14B (9-30) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

L118294

GUARD

- radiator, includes lamp brackets

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

3

195-106

WASHER,1/2"

- flat, , plated 1/2"

12шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

L127747

SUPPORT

BRACKET - upper grille support

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

11

L118293

GRILLE

- radiator

1шт.

12

L73738

HANDLE

- latch

1шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

14

L76665

SPRING

- latch

1шт.

15

L73742

ROD

- latch

1шт.

16

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

17

L54190

STRIP

BRACKET - lock, radiator cap cover, welded on, if used

1шт.

18

L112374

COVER

- radiator cap, welded on, if used

1шт.

19

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 20 and 21

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

21

R29555

KEY

- for Master padlock only, if used

2шт.
