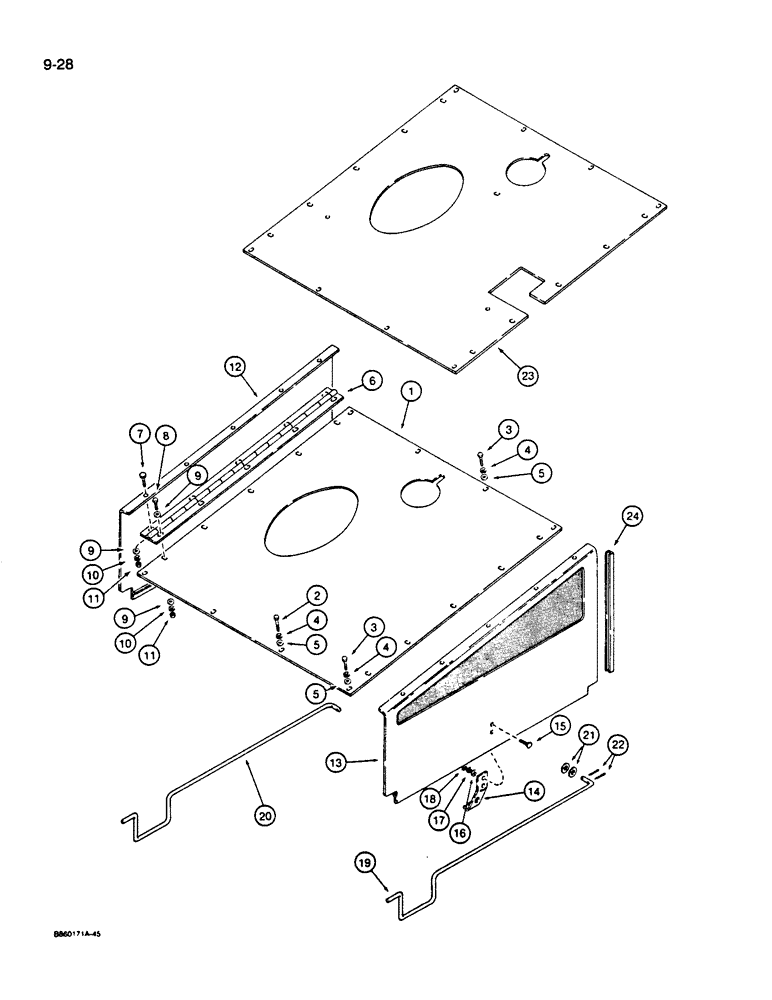

Запчасти Case W14B (9-28) - HOOD AND SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

L116898

TOP

HOOD - engine, top, standard

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

6

L115791

HINGE

- side, Serial Range: door-hood

2шт.

7

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

10шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

30шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

12

L116890

PANEL, SIDE

DOOR - hood side, left-hand

1шт.

13

L116892

PANEL, SIDE

DOOR - hood side, right-hand

1шт.

14

L115729

PLATE

BRACKET - stop, side door

2шт.

15

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

16

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

L116343

ROD

LATCH - side door, right-hand

1шт.

20

L116342

ROD

LATCH - side door, left-hand

1шт.

21

A61069

DISC

- friction, door latch

4шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

23

L116899

TOP

HOOD - engine, top, for air conditioner

1шт.

24

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, cut to 16" (406 mm) length

2шт.
