Запчасти Case W14B (9-24) - DRIVE LINE AND BRAKE GUARDS, DRIVE LINE GUARDS, BRAKE GUARDS (09) - CHASSIS/ATTACHMENTS

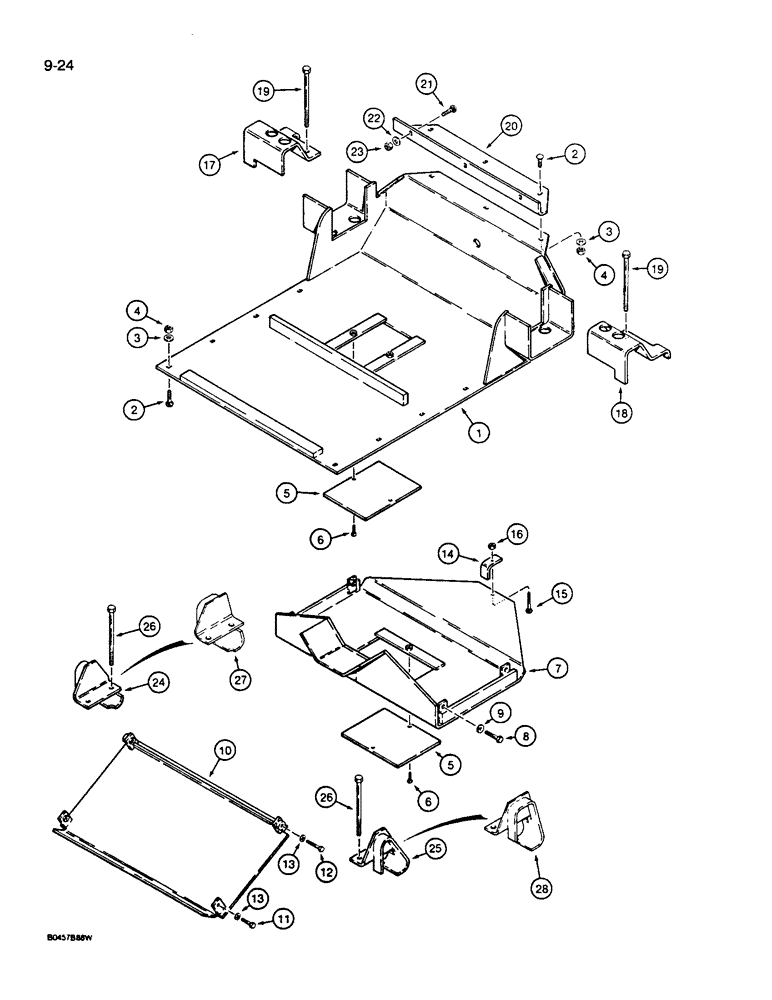

Схема запчастей Case W14B - (9-24) - DRIVE LINE AND BRAKE GUARDS, DRIVE LINE GUARDS, BRAKE GUARDS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L123632

GUARD

- drive line, front

1шт.

2

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - carriage, 1/2" - 13 NC x 2", plated, grade 5

11шт.

3

D64050

WASHER

- flat, 1/2", hardened, plated

11шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

11шт.

5

L118582

COVER

- drive line

2шт.

6

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

BOLT - hex socket flat head, 3/8" - 16 NC x 1-1/2", grade 8

4шт.

7

L118585

GUARD

- drive line, transmission

1шт.

8

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

9

D64050

WASHER

- flat, 1/2", hardened, plated

4шт.

10

L123628

GUARD

- drive line, rear

1шт.

11

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

12

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

13

D64050

WASHER

- flat, 1/2", hardened, plated

4шт.

14

L118586

BRACKET

- belly pan, rear

1шт.

15

111-328

BOLT

- carriage, 3/8" - 16 NC x 3-1/4", zinc plated

1шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

1шт.

17

L123644

GUARD

- brake, front, left-hand

1шт.

18

L123643

GUARD

- brake, front, right-hand

1шт.

19

116-704

BOLT,Hex, 3/4" - 16 x 10", Gr 8

Hex, 3/4"-16 x 10", G8, Brake guards

4шт.

20

L123966

BRACKET

- mounting, brake line guards to front drive line guards, brake guards

1шт.

21

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - carriage, 1/2" - 13 NC x 2", plated, grade 5, brake guards

3шт.

22

D64050

WASHER

- flat, 1/2", hardened, plated, brake guards

3шт.

23

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated, brake guards

3шт.

24

L123656

GUARD

- brake, rear, left-hand, used with L116697 axle with two piston caliper, brake guards

1шт.

25

L123655

GUARD

- brake, rear, right-hand, used with L116697 axle with two piston caliper, brake guards

1шт.

26

116-704

BOLT,Hex, 3/4" - 16 x 10", Gr 8

Hex, 3/4"-16 x 10", G8, Brake guards

4шт.

27

L127419

GUARD

- brake, rear, left-hand, used with L127199 axle with four piston caliper, brake guards

1шт.

28

L127418

GUARD

- brake, rear, right-hand, used with L127199 axle with four piston caliper, brake guards

1шт.

Выбрано товаров: 28
