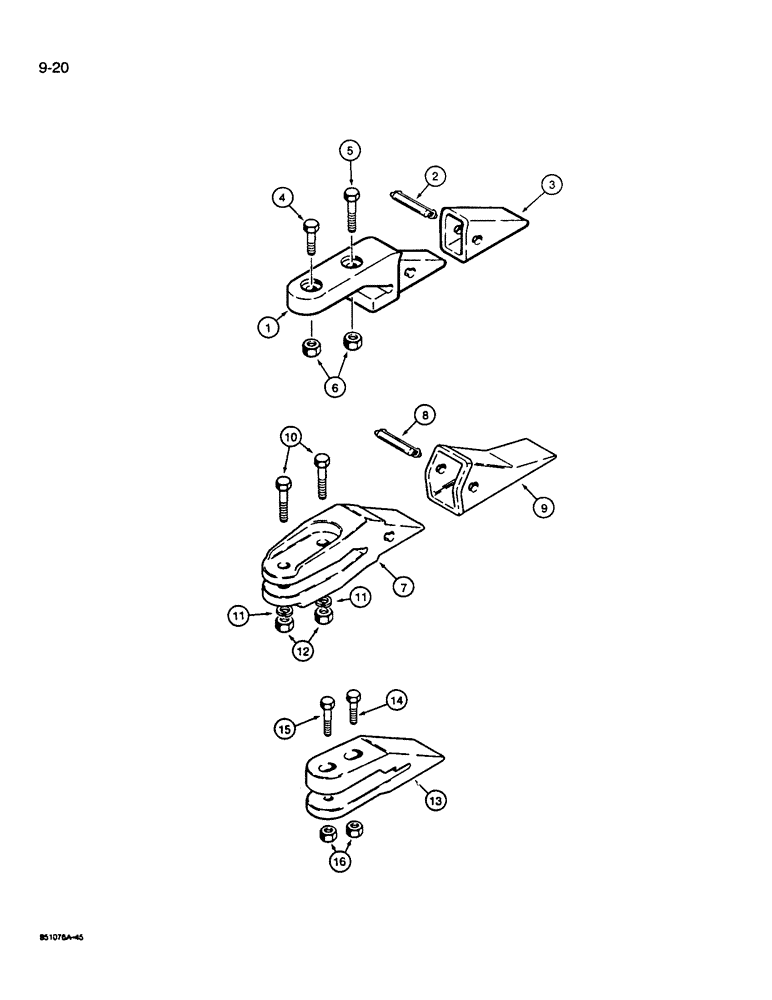

Запчасти Case W14B (9-20) - BUCKET TEETH, USED ON BUCKETS WITH WELD ON CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

D50780

TOOTH

ASSEMBLY - bucket, has standard shank, no longer used, order L123725 tooth assembly when purchasing a complete set of teeth, Includes: Ref. 1 - 3

8шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

2

D39094

BUCKET TOOTH KEY

FLEX PIN - tooth

1шт.

3

D51750

BUCKET TOOTH POINT

POINT - tooth

1шт.

4

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8, rear

8шт.

5

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8, front, used with D50780 tooth assembly

8шт.

6

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC

16шт.

L123725

TOOTH

ASSEMBLY - bucket, has heavy duty shank, Includes: Ref. 7 - 9

8шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39448

PIN

FLEX PIN - tooth

1шт.

9

D39090

POINT

- tooth

1шт.

10

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

16шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

12

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, clam bucket teeth

16шт.

13

D46885

TOOTH

- bucket, clam

7шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Front, Clam bucket teeth

7шт.

15

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, rear, clam bucket teeth

7шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Clam bucket teeth 1/2"-13, G5

14шт.

D39090 IS A FAB TOOTH. L55608 IS A FORGED TOOTH

1шт.
