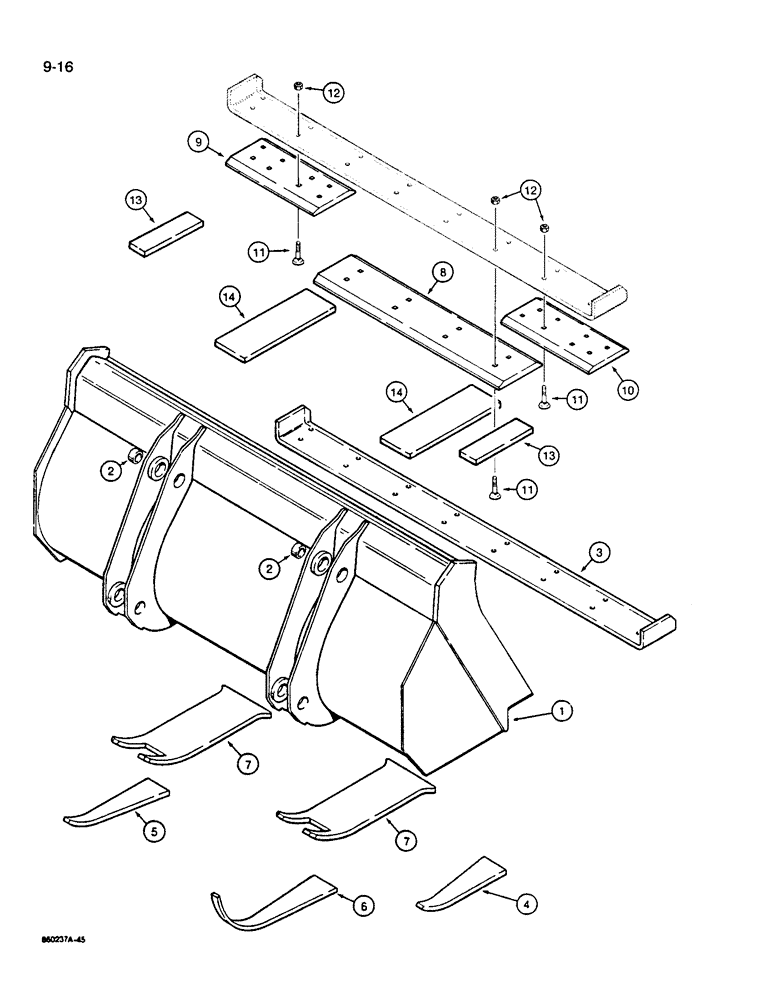

Запчасти Case W14B (9-16) - LOADER BUCKETS, 1.6 CUBIC YARD (1.26 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

L127160

BUCKET ASSEMBLY - loader, machinery item, order from Machinery Price List (replaces L114940), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket

8шт.

3

L114235

EDGE

CUTTING EDGE - bucket, weld on

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, right-hand

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, left-hand

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear

2шт.

L127161

BUCKET ASSEMBLY - loader, machinery item, order from Machinery Price List (replaces L116282), Includes: Ref. 1 - 7, 1.7 cubic yard (1.3 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1.7 cubic yard (1.3 cubic meter)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket, 1.7 cubic yard (1.3 cubic meter)

8шт.

3

L114235

EDGE

CUTTING EDGE - bucket, weld on, 1.7 cubic yard (1.3 cubic meter)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, right-hand, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - wear, outer, left-hand, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear, center, 1.7 cubic yard (1.3 cubic meter) bucket

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, bucket ear, 1.7 cubic yard (1.3 cubic meter) bucket

2шт.

L36284

EDGE

KIT - bolt on cutting edge, service option for buckets with weld on cutting edge, includes instruction sheet 8-32241, Includes: Ref. 8 - 14

1шт.

8

L116798

EDGE

- cutting, center, bolt on

1шт.

9

L128943

EDGE, CUTTING

EDGE - cutting, left-hand end, bolt on

1шт.

10

L128944

EDGE, CUTTING

EDGE - cutting, right-hand end, bolt on

1шт.

11

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8, bolt on cutting edge kit

16шт.

12

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bolt on cutting edge kit

16шт.

13

L116632

PLATE ASSY.

PLATE - skid, small, bolt on cutting edge kit

2шт.

14

L116808

LARGE PLATE

PLATE - skid, large, bolt on cutting edge kit

2шт.

W14 Buckets can be put on W14B Loaders (using different pins), but W14B Buckets cannot be put on W14 Loaders.
