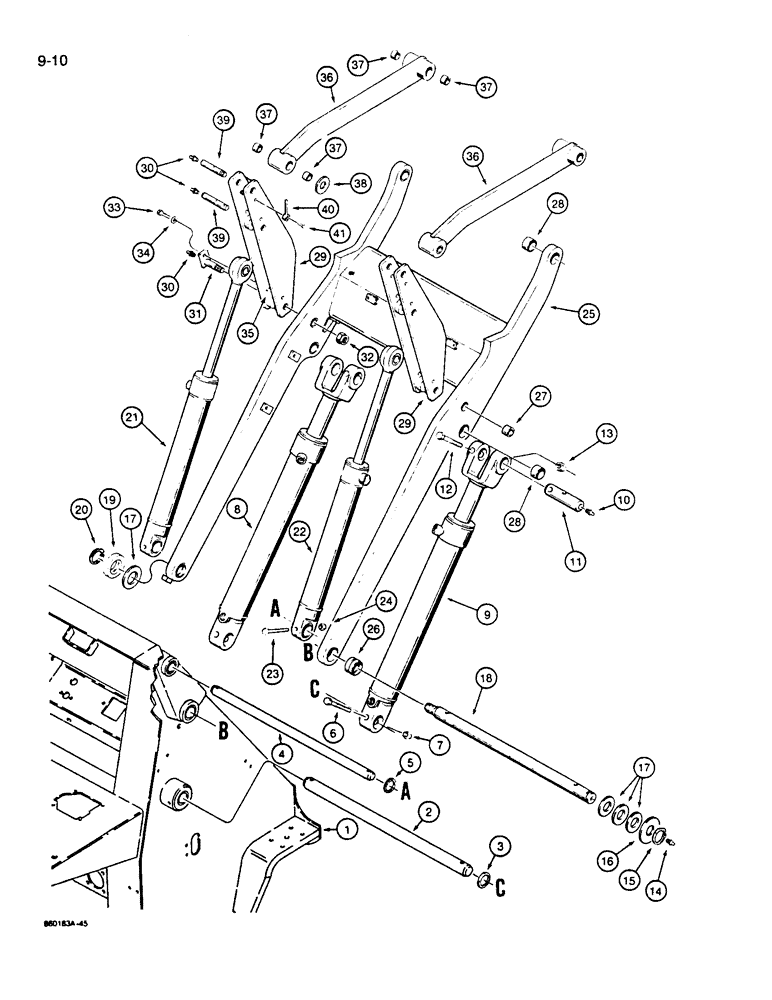

Запчасти Case W14B (9-10) - LOADER LIFT FRAME, MODELS WITH GRAPPLE BUCKET (09) - CHASSIS/ATTACHMENTS

1

L123663

CHASSIS

FRONT FRAME ASSEMBLY - see Figure 9-34 for component parts

1шт.

2

L112747

SHAFT

- pivot, lift cylinder

1шт.

3

L113522

SEAL

WIPER - seal, 2-1/2" ID x 3" O.D. x 3/16" thick

2шт.

4

L114271

SHAFT

- pivot, bucket cylinder

1шт.

5

L113520

SEAL

WIPER - seal, 2" ID x 2-1/2" O.D. x 3/16" thick

2шт.

6

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

7

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see figures 8-36 and 8-38 for correct cylinder

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see figures 8-36 and 8-38 for correct cylinder

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

11

L51558

PIN,50.8mm OD x 121.92mm L

- mounting, lift cylinder to lift arm frame

2шт.

12

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

15

L16015

RING

- pin retaining, lift frame

1шт.

16

L47700

WASHER

- flat, 2-1/2" ID x 4" O.D. x 5/16" thick

1шт.

17

74298

WASHER

SPACER - hardened, 2-1/2" ID x 3-9/16" O.D. x 1/8" thick

1шт.

18

L112499

SHAFT

- lift frame pivot

1шт.

19

L115063

WASHER

- retaining, 2-1/4" ID x 4" O.D.

1шт.

20

L101691

RING, SNAP

SNAP RING - lift arm

1шт.

21

G108393

CYLINDER

ASSEMBLY - grapple bucket, left-hand, see Figure 8-40

1шт.

22

G108394

CYLINDER

ASSEMBLY - grapple bucket, right-hand, see Figure 8-40

1шт.

23

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

24

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

L117132

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

FRAME - lift

1шт.

26

L50508

BUSHING,63.75mm ID x 76.2mm OD x 40mm L

- 2-1/2" (63 mm) ID

2шт.

27

L55747

BUSHING

- 2-1/8" (53 mm) O.D.

2шт.

28

L50509

BUSHING,51.104mm ID x 63.5mm OD x 38.1mm L

- 2" (51 mm) ID

4шт.

29

L55302

DIPPER

BELLCRANK - grapple bucket

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

31

L107790

PIN,38.1mm OD x 172.72mm L

- bellcrank to lift arm

2шт.

32

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2 inch NF

2шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

34

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

35

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

6шт.

36

L105077

LINK

- bucket, right-hand and left-hand, Includes: Ref. 37

2шт.

37

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- used in right-hand and left-hand links

4шт.

38

L47224

WASHER

- hardened, 1-9/16" ID x 3" O.D. x 1/4" thick

2шт.

39

L112502

PIN,38.1mm OD x 159mm L

- bellcrank to grapple bucket link and grapple bucket cylinder

4шт.

40

R17756

ROD,12.7mm OD x 109.54mm L

PIN - bellcrank

4шт.

41

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", plated

4шт.
