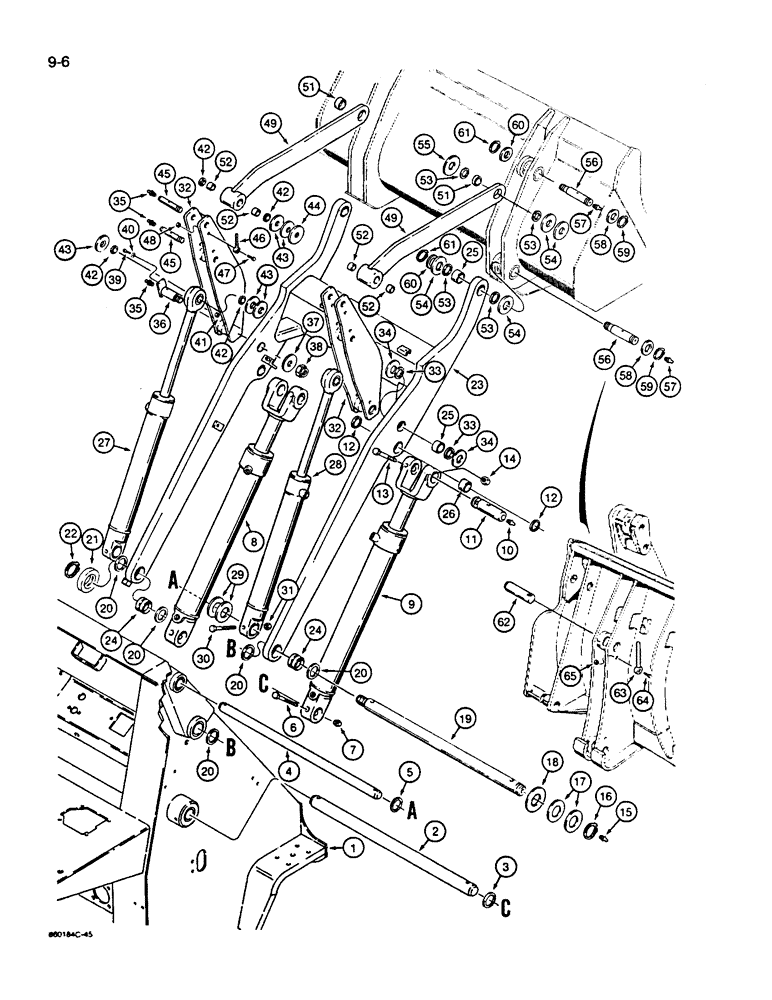

Запчасти Case W14B (9-06) - LOADER LIFT FRAME, MODELS WITH STANDARD OR CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

1

L123663

CHASSIS

FRONT FRAME ASSEMBLY - see Figure 9-34 for component parts

1шт.

2

L112747

SHAFT

- pivot, lift cylinder

1шт.

3

L113522

SEAL

WIPER - seal, 2-1/2" ID x 3" O.D. x 3/16" thick

2шт.

4

L114271

SHAFT

- pivot, bucket cylinder

1шт.

5

L113520

SEAL

WIPER - seal, 2" ID x 2-1/2" O.D. x 3/16" thick

2шт.

6

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

2шт.

7

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see figures 8-32 and 8-34 for correct cylinder

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see figures 8-32 and 8-34 for correct cylinder

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

11

L113816

PIN

- mounting, lift cylinder to lift arm frame

2шт.

12

L112483

SEAL

WIPER - seal, 2-1/4" ID x 2-3/4" O.D. x 3/16" thick

4шт.

13

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

14

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

16

L16015

RING

SNAP RING - pin retaining, lift frame

1шт.

17

74298

WASHER

SPACER - hardened, 2-1/2" ID x 3-9/16" O.D. x 1/8" thick

1шт.

18

L47700

WASHER

- flat, 2-1/2" ID x 4" O.D. x 5/16" thick

1шт.

19

L112499

SHAFT

- lift frame pivot

1шт.

20

L113522

SEAL

WIPER - seal, 2-1/2" ID x 3" O.D. x 3/16" thick

6шт.

21

L115063

WASHER

- retaining, 2-1/4" ID x 4" O.D.

1шт.

22

L101691

RING, SNAP

SNAP RING - lift arm

1шт.

L116980

ARM ASSY.

FRAME ASSEMBLY - loader lift, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

24

L112478

BUSHING

- lift arm pivot, at front frame

2шт.

25

L112479

BUSHING,51.05mm ID x 63.5mm OD x 33.1mm L

- lift arm, at bellcrank and bucket

4шт.

26

L112489

BUSHING,57.4mm ID x 69.85mm OD x 33.1mm L

- lift cylinder to lift arm

2шт.

27

G108393

CYLINDER

ASSEMBLY - bucket, left-hand, parts list Figure 8-40

1шт.

28

G108394

CYLINDER

ASSEMBLY - bucket, right-hand, parts list Figure 8-40

1шт.

29

L11917

WASHER

SPACER - flat, hardened, 2-1/32" ID x 3-1/2" O.D.

1шт.

30

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

31

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

32

L114948

CRANK LEVER

BELLCRANK - bucket

2шт.

33

L113520

SEAL

WIPER - seal, 2" ID x 2-1/2" O.D. x 3/16" thick

4шт.

34

D37449

SHIM,.0747" Thk

Washer, flat (2-1/32" ID x 4" OD) .0747" Thk

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

36

L114907

PIN

- bellcrank to lift arm

2шт.

37

D36478

WASHER

- flat, hardened, 1-9/16" ID x 3" O.D. x 5/32" thick

2шт.

38

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2 inch NF

2шт.

39

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

40

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

41

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

42

L112480

WASHER

WIPER - seal, 1-1/2" ID x 1-7/8" O.D. x 1/8" thick

8шт.

43

A11990

WASHER

- flat, 1-1/2" ID x 2-1/2" O.D. x 1/16" thick

1шт.

44

L47224

WASHER

- hardened, 1-9/16" ID x 3" O.D. x 1/4" thick

2шт.

45

L112502

PIN,38.1mm OD x 159mm L

- bellcrank to bucket link and bucket cylinder

4шт.

46

R17756

ROD,12.7mm OD x 109.54mm L

LOCK - pin retaining, bellcrank

4шт.

47

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

48

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

49

L114734

LINK

- standard bucket

2шт.

50

L113552

LINK ASSY.

LINK - clam bucket, not shown, Includes: Ref. 51 and 52

2шт.

51

L50539

BUSHING,51.05mm ID x 63.5mm OD x 25.4mm L

- L114734 or L113552, Serial Range: link-bucket

1шт.

52

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- L114734 or L113552, Serial Range: link-bellcrank

2шт.

53

L113520

SEAL

WIPER - seal, 2" ID x 2-1/2" O.D. x 3/16" thick

8шт.

54

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

55

L76643

SPACER

- link, 3" O.D. x 3/8" thick

2шт.

56

L113368

PIN,50.8mm OD x 168mm L

- bucket, use only on models with standard bucket

4шт.

57

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

58

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2-1/16 x 3 x 1/8 inch, use with Ref. 56 pin only

4шт.

59

D26919

SNAP RING,#200, Ext

Ring, Snap, , outer, pin, use with ref. 56 pin only #200, Ext

4шт.

60

95-81152

WASHER,1 13/16" x 2 3/4" x .109"

- flat, 1-13/16 x 2-3/4 x 1/8 inch, use with Ref. 56 pin only

4шт.

61

D25280

SNAP RING,#175, Ext

Ring, Snap, , inner, pin, use with ref. 56 pin only #175, Ext

4шт.

62

L123938

PIN

- bucket, use only on models with clam bucket

4шт.

63

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin, bucket to bucket link and lift arm, use with Ref. 62 pin only

4шт.

64

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Use with Ref. 62 pin only Hex, 1/2"-13 x 1 3/4", G5

4шт.

65

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, , Special, Use with Ref. 62 pin only 1/2"-13, GB, Thin

4шт.
