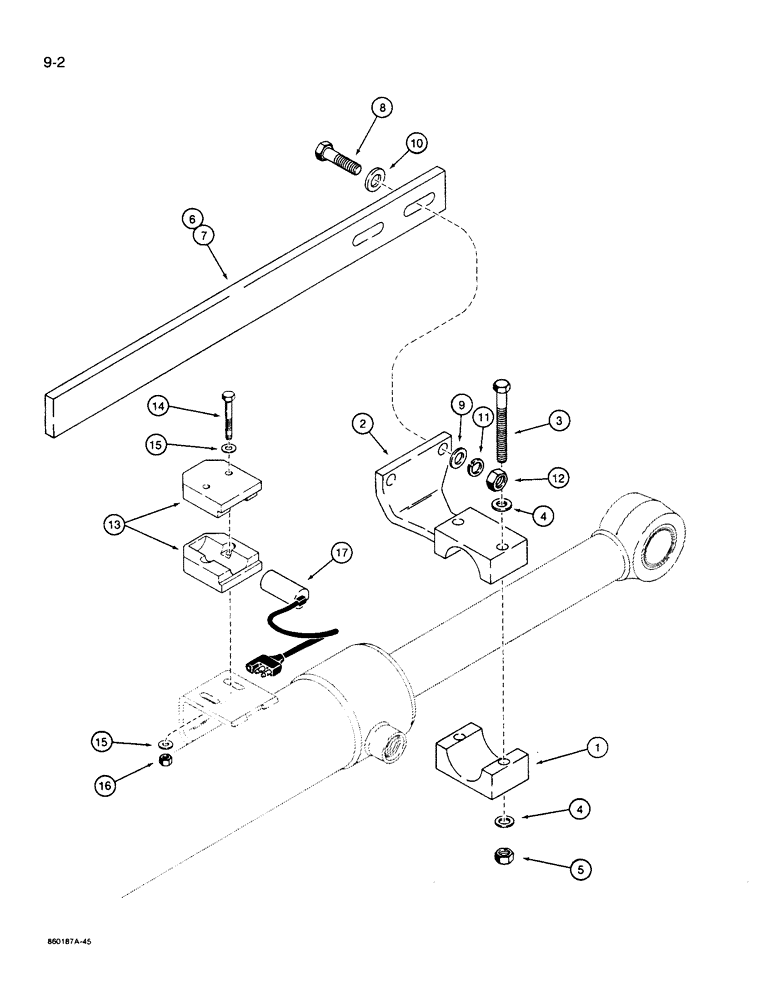

Запчасти Case W14B (9-02) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

L118371

CLAMP

- lower, cylinder rod

1шт.

2

L118372

BRACKET

CLAMP - bracket, upper

1шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

4

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

4шт.

5

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

L118153

BAR

- sensing, return-to-dig, 22-5/8" (575 mm) long, used on all models except Feedlot Special

1шт.

7

L123850

BAR

- sensing, return-to-dig 19-1/2" (495 mm) long, used on Feedlot Special units

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", plated

2шт.

9

R24718

WASHER

- flat, hardened, 1/2"

2шт.

10

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

13

L117005

CLAMP

- switch

2шт.

14

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex head, 1/4" - 20 NC x 2-1/2", plated

2шт.

15

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

16

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

17

R47120

SWITCH

- proximity

1шт.
