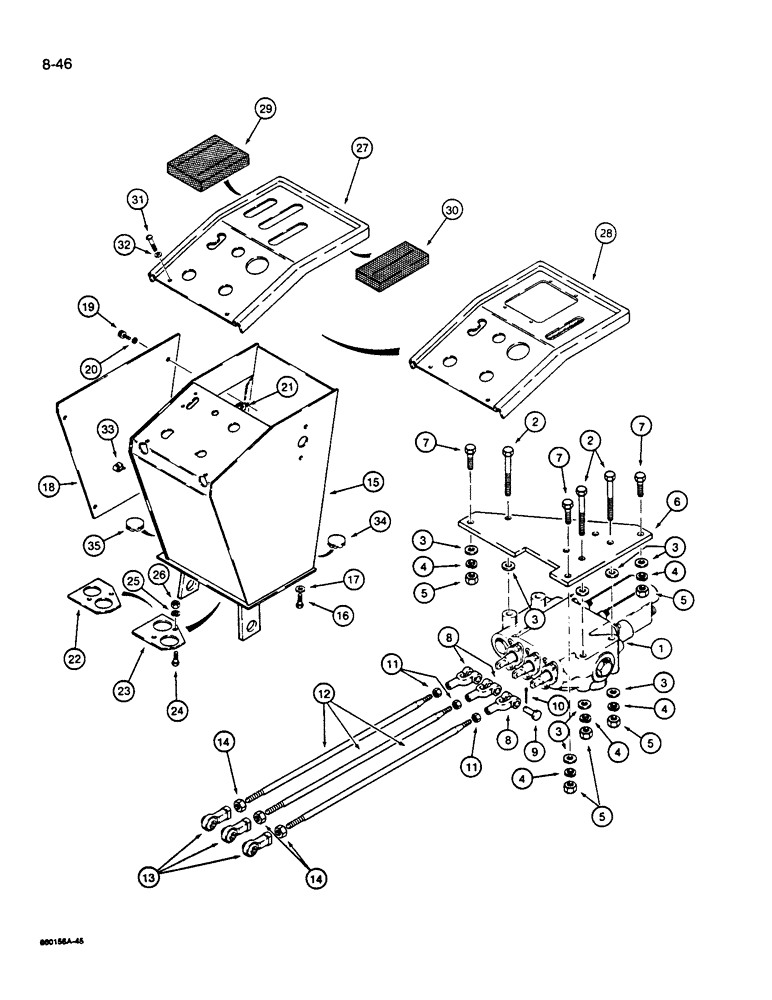

Запчасти Case W14B (8-46) - LOADER CONTROL LINKAGE - VALVE TO TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, two or three spool, parts list figure 8-18 or 8-20

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

195-106

WASHER,1/2"

- flat, , plated 1/2"

9шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

6

L112631

PLATE

- control valve mounting

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

8

H44198

YOKE

CLEVIS - at spool eye

2-3шт.

9

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2-3шт.

10

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2-3шт.

11

86637933

JAM NUT,5/16" - 24, Gr 5

2-3шт.

12

L116289

ROD

- control valve to linkage at control tower

2-3шт.

13

L115782

BALL JOINT

END - rod, female

2-3шт.

14

129-165

JAM NUT,Jam, 1/2"-20, G5

2-3шт.

15

L117921

BOOM

CONTROL TOWER - loader linkage and levers

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

18

L116419

DOOR

COVER - access, inner side of control tower

1шт.

19

164-401

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 1/2"

BOLT - hex socket button head, No. 4 - 40 NC x 1/2", grade 8, plated

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

131-610

SPRING NUT,U, Ret, 1/4"-20

4шт.

22

L117860

PLATE

- control tower base, used on models with dual lever lift and bucket control

1шт.

23

L117880

COVER

PLATE - control tower base, used on models with single lever lift and bucket control

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

L117857

COVER ASSY

COVER - control tower, top, models with dual lever loader control

1шт.

28

L117854

COVER

- control tower, top, models with single lever loader control, Includes: Ref. 29 and 30

1шт.

29

L116095

SEAL

- foam, levers, models with dual lever loader control only

1шт.

30

L116096

SEAL

- foam, auxiliary lever

1шт.

31

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - oval Phillips head, No. 10 - 24 NC x 1", black

4шт.

32

F43576

WASHER

- special shoulder, finishing

4шт.

33

131-700

NUT

- U-type, No. 10 - 24 NC

4шт.

34

353-415

PLUG,Dome, 1.500" hole, Nylon

- nylon, 1-1/2", control tower base, if used

1шт.

35

L116169

PLUG

- special, inner side of control tower, models with single lever loader control only

1шт.
