Артикул
Название
Примечание
Количество

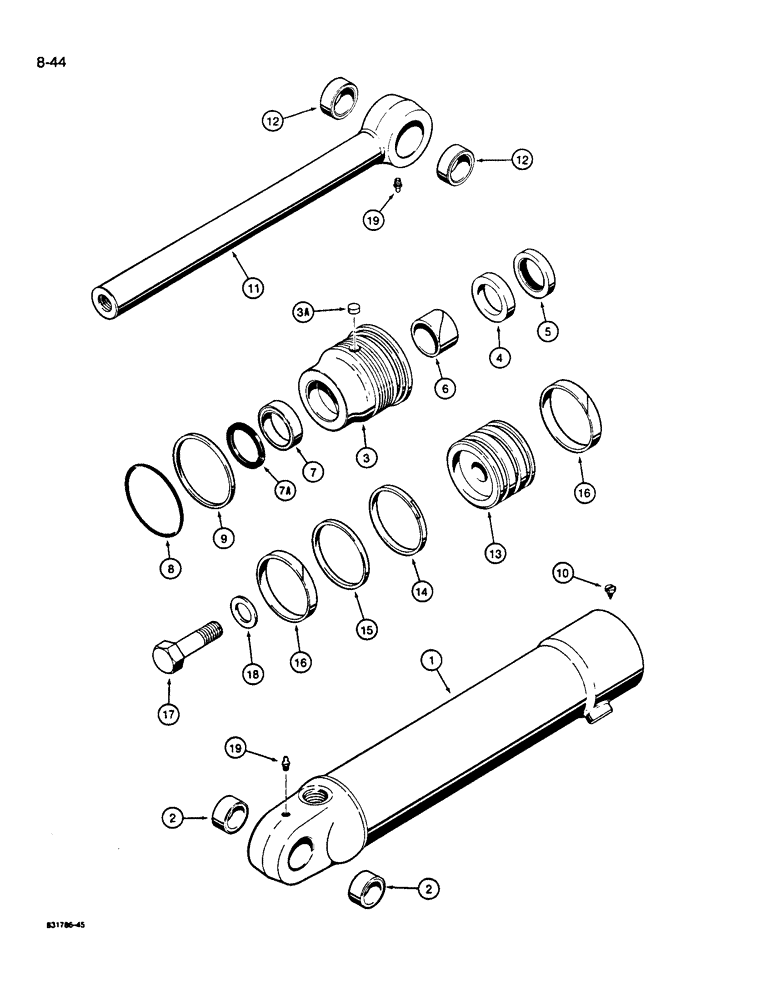

G101226
CYLINDER ASSY.
CYLINDER ASSEMBLY - right-hand, 3" (76 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 19
1шт.
G101227
CYLINDER ASSY.
CYLINDER ASSEMBLY - left-hand, 3" (76 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 19
1шт.
1
D46911
CYLINDER
TUBE ASSEMBLY - G101226 right-hand cylinder, Includes: Ref. 2
1шт.
1
D46910
TUBE
ASSEMBLY - G101227 left-hand cylinder, Includes: Ref. 2
1шт.
2
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- tube
2шт.
G104222
GLAND
ASSEMBLY - cylinder, Includes: Ref. 3 - 9
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
3a
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
4
NSS
NOT SOLD SEPARAT
RETAINING RING - gland
1шт.
5
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - piston rod
1шт.
Part of Seal Kit, P/N G109452
1шт.
6
G102424
BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L
- Center
1шт.
Part of Seal Kit, P/N G109452
1шт.
7
G107921
SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk
U-CUP SEAL - piston rod, wide, with O-ring
1шт.
Part of Seal Kit, P/N G109452
1шт.
7a
G109093
SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk
- buffer, groved, piston rod, narrow
1шт.
Part of Seal Kit, P/N G109452
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
- gland
1шт.
Part of Seal Kit, P/N G109452
1шт.
9
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
BACKUP RING - gland O-ring
1шт.
Part of Seal Kit, P/N G109452
1шт.
10
187-1524
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - hex head, slotted, self tapping, No. 8 - 32 NC x 3/8", plated, if used
1шт.
11
G33467
ROD
ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12
1шт.
12
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- piston rod
2шт.
13
G100442
PISTON
- cylinder
1шт.
Part of Seal Kit, P/N G109452
1шт.
Part of Seal Kit, P/N G109452
1шт.
Part of Seal Kit, P/N G109452
1шт.
17
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
- hex head, 3/4" - 16 NF x 2-1/2", grade 8
1шт.
18
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- hardened
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
G109452
GASKET KIT
KIT - seal, includes Refs. 4, 5, 6, 7, 7A, 8, 9, and 14 - 16
1шт.
Выбрано товаров: 35
