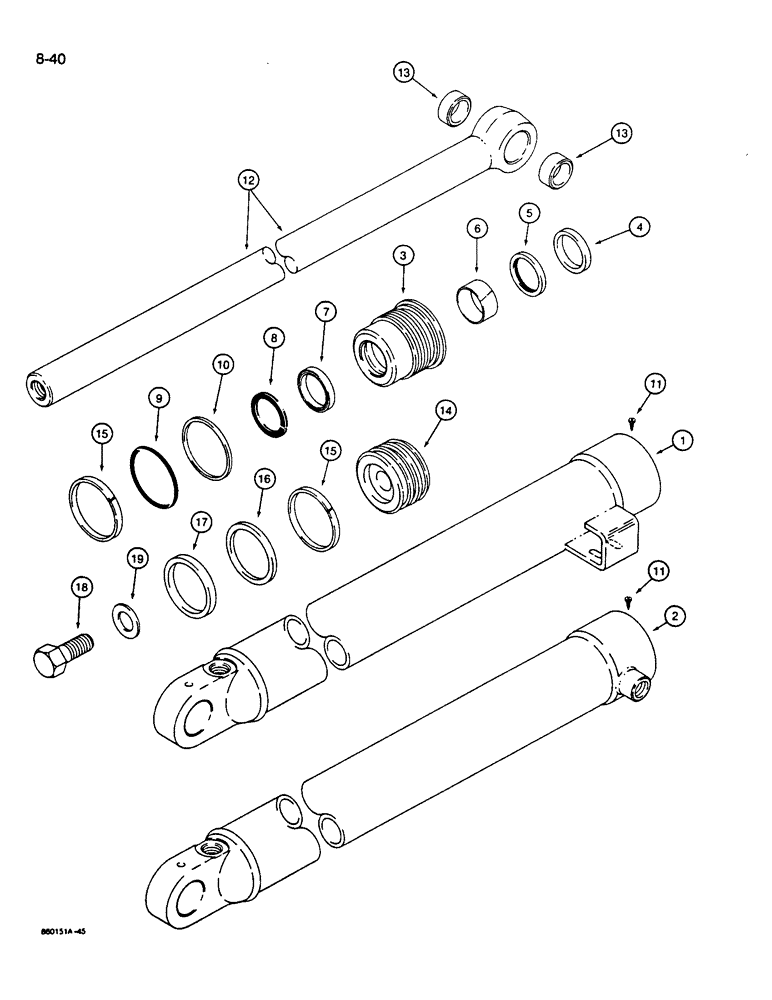

Запчасти Case W14B (8-40) - BUCKET CYLINDERS - G108393 AND G108394 (08) - HYDRAULICS

G108394

CYLINDER

ASSEMBLY - right-hand, 3-1/2" (90 mm) ID x 30-1/2" (775 mm) stroke, Includes: Ref. 1 - 19

1шт.

G108393

CYLINDER

ASSEMBLY - left-hand, 3-1/2" (90 mm) ID x 30-1/2" (775 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

G108396

TUBE,88.9 mm DIA x 1001 mm L

- G108394 cylinder

1шт.

2

G108395

TUBE,88.9 mm DIA x 1001 mm L

- G108393 cylinder

1шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bushing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N G109453

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109453

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, with O-ring

1шт.

Part of Seal Kit, P/N G109453

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod

1шт.

Part of Seal Kit, P/N G109453

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland seal

1шт.

Part of Seal Kit, P/N G109453

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland

1шт.

Part of Seal Kit, P/N G109453

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self tapping, No. 8 - 32 NC x 3/8", plated

1шт.

12

G108402

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

14

G100694

PISTON

- one piece

1шт.

15

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit, P/N G109453

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- piston

1шт.

Part of Seal Kit, P/N G109453

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109453

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G109453

GASKET KIT

KIT - seal, includes Refs. 5 - 10, and 15 - 17

1шт.
