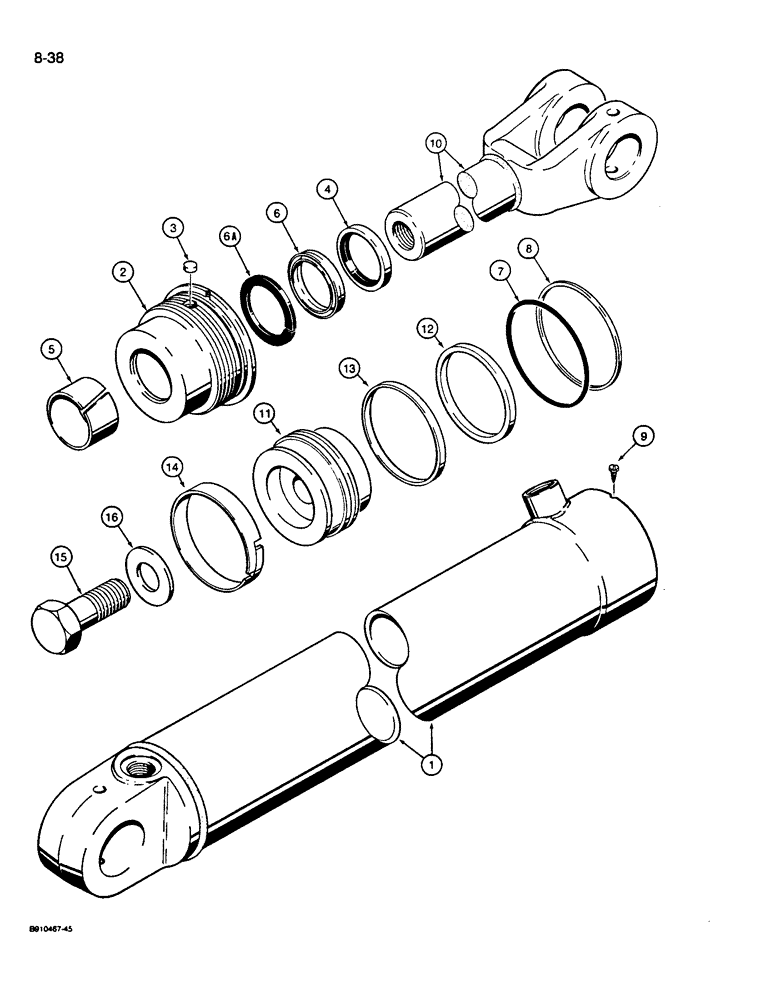

Запчасти Case W14B (8-38) - LIFT CYLINDERS, FEEDLOT SPECIAL ONLY, WITH ONE PIECE PISTON (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1986749C1
CYLINDER
ASSEMBLY - 4-1/2 (114 mm) ID x 25-3/8 inch (645 mm) stroke, right-hand, Includes: Ref. 1 - 16
1шт.
1986750C1
CYLINDER
ASSEMBLY - 4-1/2 (114 mm) ID x 25-3/8 inch (645 mm) stroke, left-hand, Includes: Ref. 1 - 16
1шт.
1
G101722
TUBE
- 1986749C1 cylinder
1шт.
1
G101723
TUBE
- 1986750C1 cylinder
1шт.
G104950
GLAND
ASSEMBLY - cylinder, Includes: Ref. 2 - 8
1шт.
2
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
3
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
4
D95145
WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
WIPER - piston rod
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
5
G102426
BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L
- Center
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
6
G107924
SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk
- U-cup, piston rod, with O-ring
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
6a
G109086
RING
SEAL - buffer, grooved, piston rod
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
8
G32284
BACK-UP RING
- backup, gland
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
9
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - self tapping, hex hd, No. 8 NC x 3/8 "
1шт.
10
G101988
ROD
- piston, 2-1/4 inch (57 mm) diameter
1шт.
11
1986543C1
PISTON
- one piece
1шт.
12
G101995
SEALING RING,Square, 5.28mm Thk x 100.71mm ID
RING - backup, inner, piston seal
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
13
G101994
SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk
- piston
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
14
G101996
WEAR RING,4.5" OD x 0.75" Thk
RING - wear, piston
1шт.
Part of Seal Kit, P/N 1986742C1
1шт.
15
28-2052
BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8
- hex, 1-1/4 NF x 3-1/4 inch, grade 8
1шт.
16
G104989
WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk
- hardened
1шт.
1986742C1
SEAL KIT
KIT - seal, includes Refs. 4, 5, 6, 6A, 7, 8, and 12 - 14
1шт.
Выбрано товаров: 31
