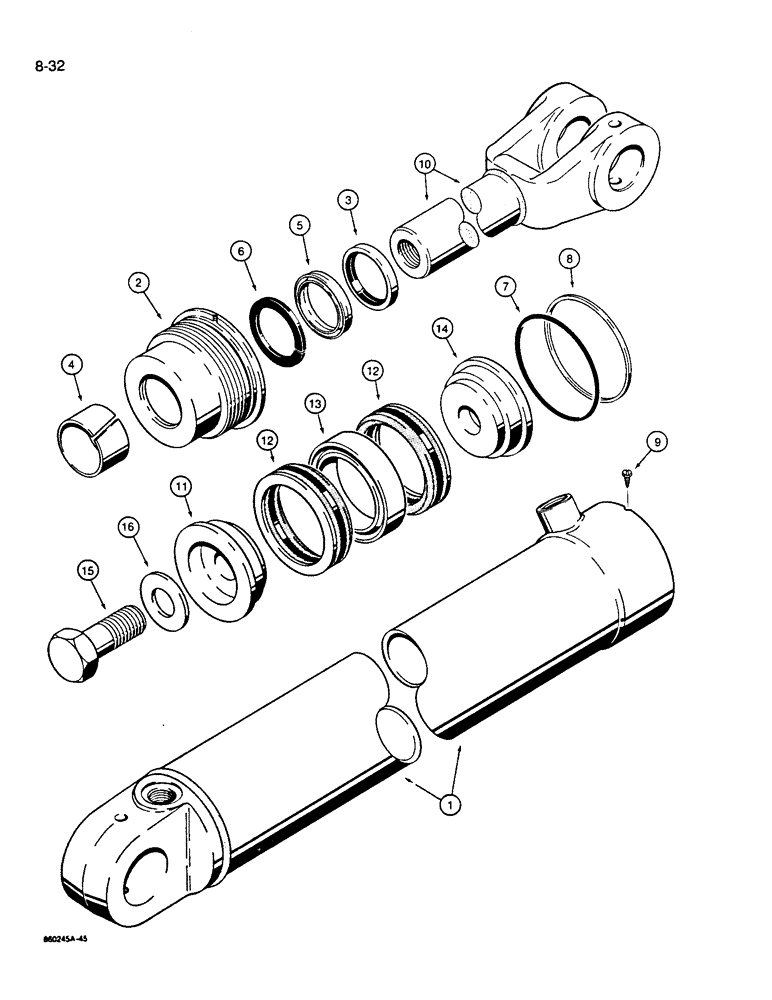

Запчасти Case W14B (8-32) - LIFT CYLINDERS, ALL MODELS EXCEPT FEEDLOT SPECIAL, WITH TWO PIECE PISTON (08) - HYDRAULICS

G107576

CYLINDER

ASSEMBLY - 4-1/2 (114 mm) ID x 25-3/8 inch (645 mm) stroke, right-hand, Includes: Ref. 1 - 16

1шт.

G107575

CYLINDER

ASSEMBLY - 4-1/2 (114 mm) ID x 25-3/8 inch (645 mm) stroke, left-hand, Includes: Ref. 1 - 16

1шт.

1

G108672

TUBE,114.17 mm ID x 114.3 mm DIA x 882.90 mm L

- G107576 cylinder

1шт.

1

G108671

TUBE,114.17 mm ID x 114.3 mm DIA x 882.90 mm L

- G107575 cylinder

1шт.

G104950

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105520

1шт.

4

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N G105520

1шт.

5

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, with O-ring

1шт.

Part of Seal Kit, P/N G105520

1шт.

6

G109086

RING

SEAL - buffer, grooved, piston rod

1шт.

Part of Seal Kit, P/N G105520

1шт.

7

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G105520

1шт.

8

G32284

BACK-UP RING

- backup, gland

1шт.

Part of Seal Kit, P/N G105520

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

10

G107577

ROD

- piston, 2-1/4 inch (57 mm) diameter

1шт.

11

D46931

PISTON

- split, bolt half

1шт.

12

D47205

PACKING

- piston, V-type

2шт.

Part of Seal Kit, P/N G105520

1шт.

13

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

SPACER - packing

1шт.

14

D46425

PISTON

- split, rod half

1шт.

15

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

G105520

GASKET KIT

KIT - seal, includes Refs. 3 - 8 and 12

1шт.
