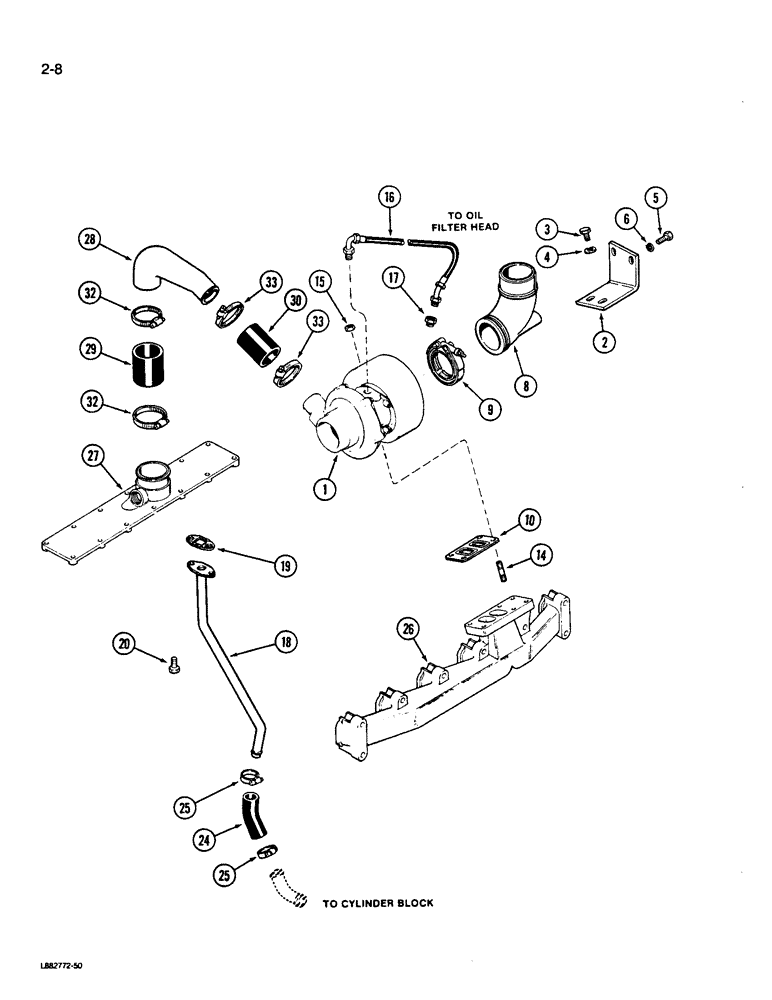

Запчасти Case W14B (2-08) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-10)

1шт.

2

A171823

BRACKET

- elbow

1шт.

3

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8)

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

8

A173623

ELBOW

- turbocharger exhaust

1шт.

9

A170467

CLAMP,72mm ID

- tube retaining

1шт.

10

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

14

J905417

STUD

- turbocharger mounting

4шт.

15

J901961

NUT

- hex, turbocharger mounting

4шт.

16

J909548

HOSE

ASSEMBLY - oil supply, turbocharger

1шт.

17

A77457

FITTING

CONNECTOR - supply hose

1шт.

18

J918579

TUBE

- oil drain (Replaces J905354)

1шт.

19

J914388

GASKET

- drain tube

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm (Replaces J900630)

2шт.

24

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

26

REF

INSTRUCTION

MANIFOLD - exhaust (See Figure 2-12)

1шт.

27

REF

INSTRUCTION

COVER - intake manifold (See Figure 2-12)

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

29

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

1шт.

30

J916166

INTAKE AIR HOSE

HOSE - air intake

1шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adj. #36, 1.81/2.75 Type F Worm

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
