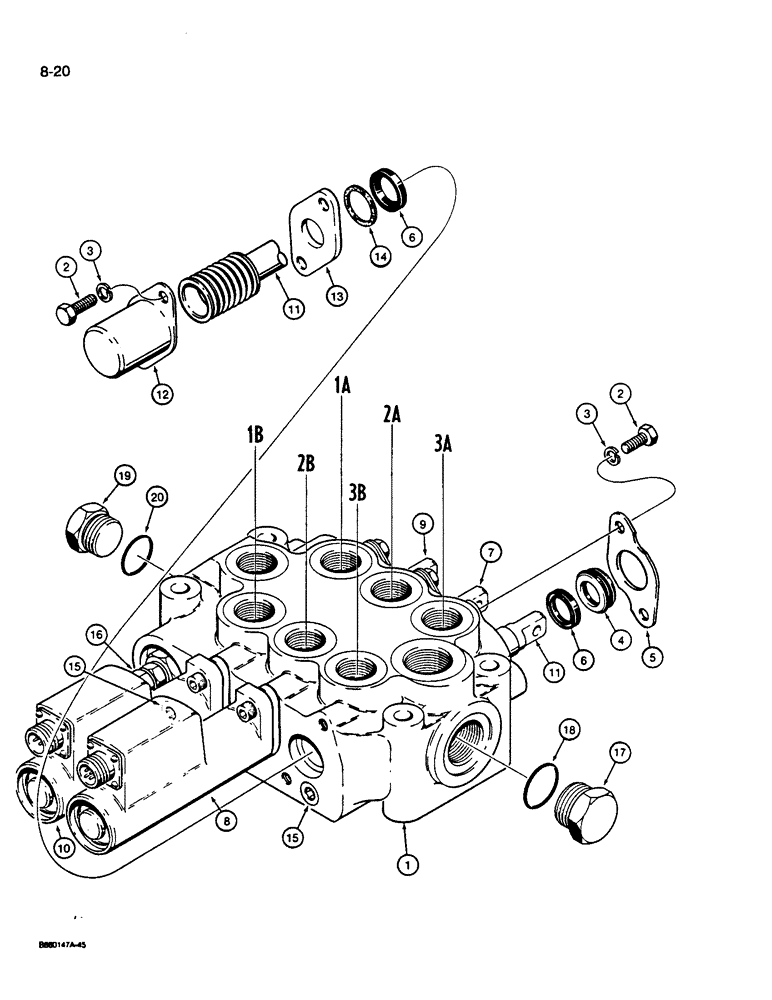

Запчасти Case W14B (8-20) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

L115160

VALVE

CONTROL VALVE ASSEMBLY - loader, three spool, Hydreco No. MVT025RY036, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

D82728

RING

WIPER - spool

3шт.

5

N8212

PLATE ASSY.

PLATE - retaining

3шт.

6

D82727

SEAL

- spool

6шт.

7

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list figure 8-22

1шт.

8

D82929

VALVE

DETENT ASSEMBLY - lift, parts list figure 8-24

1шт.

9

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list figure 8-22

1шт.

Spool assemblies never sold separately - must be hand fitted to valve bodies - per service

1шт.

10

N13528

DETENT

ASSEMBLY - bucket, parts list figure 8-26

1шт.

11

REF

INSTRUCTION

SPOOL ASSEMBLY - auxiliary, parts list figure 8-22

3шт.

12

D24779

COVER

- spool, auxiliary

1шт.

13

D82722

PLATE

- retaining

1шт.

14

D82723

BACK-UP RING

BACKUP RING - seal

1шт.

15

N6716

VALVE

CIRCUIT RELIEF VALVE - parts list figure 8-28, port 1B of bucket spool and ports 3A and 3B of auxiliary spool

3шт.

15a

N13527

VALVE

CIRCUIT RELIEF VALVE - parts list figure 8-28, port 1A of bucket spool, not shown

1шт.

16

REF

INSTRUCTION

MAIN RELIEF VALVE - parts list figure 8-28

1шт.

17

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 18 Hex Hd, 1 5/16"-12 ORB

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

19

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 20 Hex Hd, 1 1/16"-12 ORB

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

21

REF

INSTRUCTION

CHECK VALVE - port 2A of lift spool, not shown, see figure 8-29, Refs. 20 - 24

1шт.
