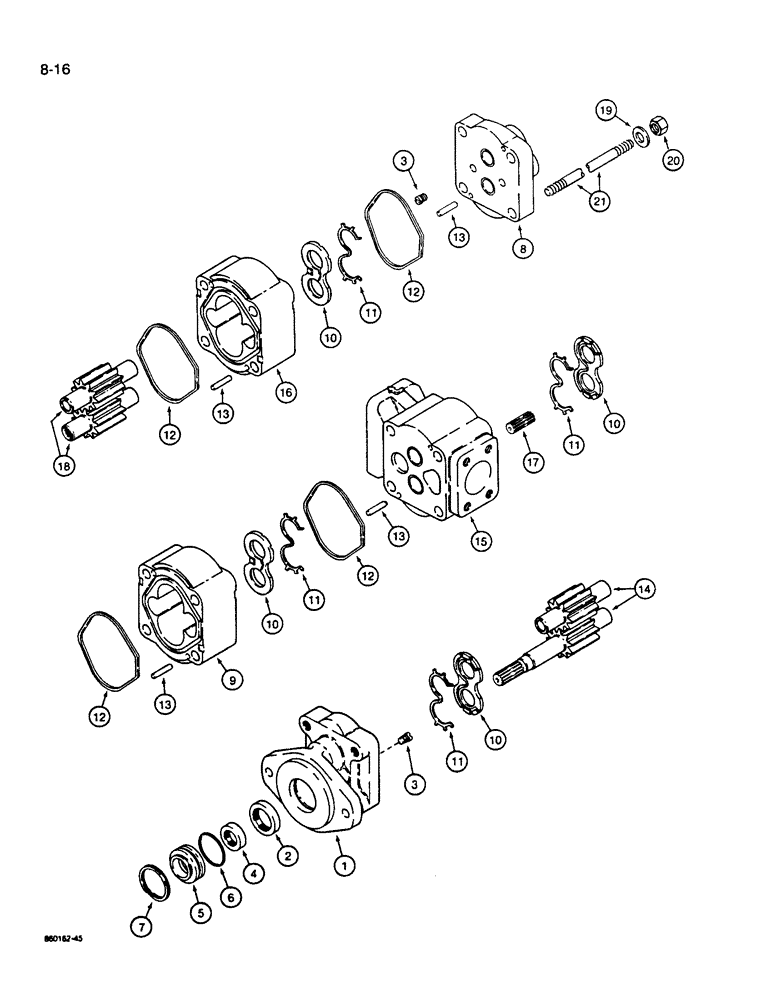

Запчасти Case W14B (8-16) - EQUIPMENT AND STEERING PUMP (08) - HYDRAULICS

L116685

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment and steering, Commercial Shearing part No. 324-9120-042, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- shaft

1шт.

3

L32320

PLUG

- 7/16" - 20 NF

4шт.

4

A24845

OIL SEAL

LIP SEAL - shaft

1шт.

5

N13580

RETAINER

- seal

1шт.

6

A24880

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

- shaft

1шт.

7

71466

SNAP RING,#206, 2.190", Int, Spiral

- shaft

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

9

N13581

HOUSING

- gear, shaft end

1шт.

10

N13582

THRUST PLATE

PLATE, THRUST

4шт.

11

N13583

SEAL

- gear housing

4шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing

4шт.

13

W16323

DOWEL

PIN - gear housing

8шт.

14

NSS

NOT SOLD SEPARAT

GEAR SET - shaft end

1шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

16

N13585

HOUSING

- gear, closed end

1шт.

17

N13586

SHAFT

- connecting

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR SET - closed end

1шт.

19

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- flat, 5/8", hardened

4шт.

20

129-183

NUT,5/8"-11, G8

4шт.

21

S82801

STUD

- pump

4шт.
