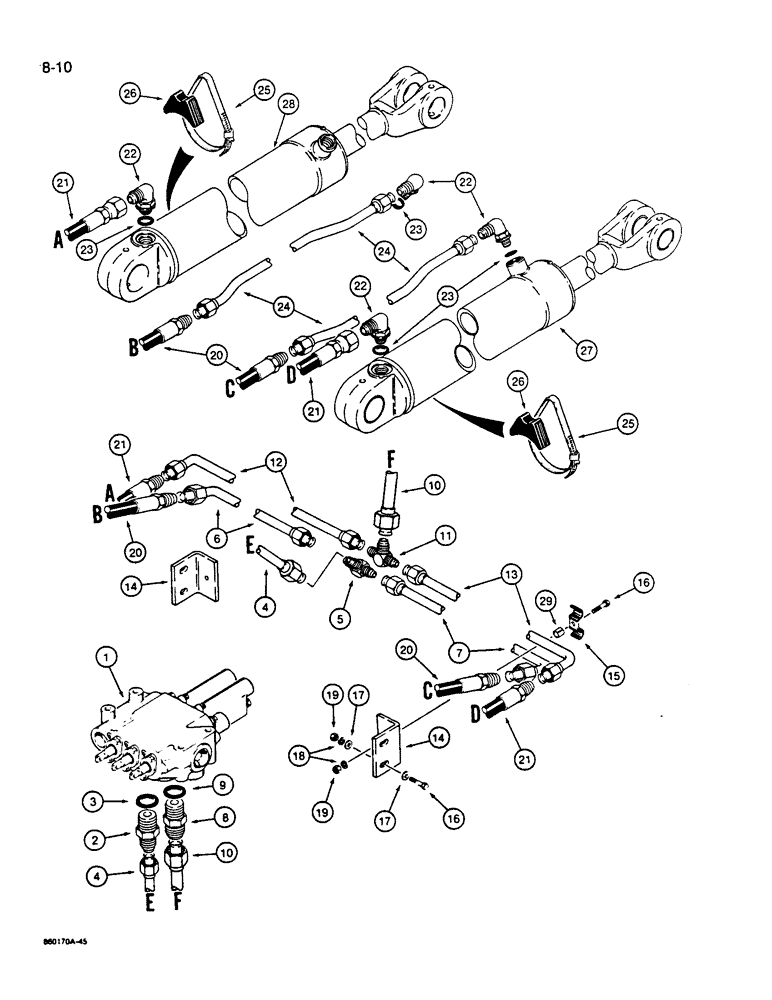

Запчасти Case W14B (8-10) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, see figures 8-18 and 8-20 for correct valve assembly and components

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

L113832

TUBE ASSY.,19.05 mm OD x 947.4, 320.8 mm L

TUBE - lift manifold, rod end

1шт.

5

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

6

L114588

TUBE,129.7 mm L

- lift, left-hand rod end

1шт.

7

L114590

TUBE,127.3 mm L

- lift, right-hand rod end

1шт.

8

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

10

L117774

TUBE ASSY.,25.4 mm OD

TUBE - lift manifold, closed end

1шт.

11

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- male

1шт.

12

L114589

TUBE ASSY.,179.3 mm L

TUBE - lift, left-hand closed end

1шт.

13

L114591

TUBE ASSY.,179.3 mm L

TUBE - lift, right-hand closed end

1шт.

14

L47468

BRACKET

- tube mounting

2шт.

15

R15257

CLAMP

- tube

2шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

20

L113967

HOSE ASSY.

HOSE - 36" (914 mm) long, lift cylinder rod end

2шт.

21

L116141

HOSE

- 36" (914 mm) long, lift cylinder closed end

2шт.

22

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 23

4шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

24

L77722

TUBE,0.75" OD x 29.5, 0.97" L

- at cylinder

2шт.

25

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - tube to cylinder

2шт.

26

L79937

SADDLE

- tube

2шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see figures 8-32 - 8-38 for correct cylinder assembly and components

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see figures 8-32 - 8-38 for correct cylinder assembly and components

1шт.

29

D76209

SPACER

- tube, Serial Range: bracket-clamp

2шт.
