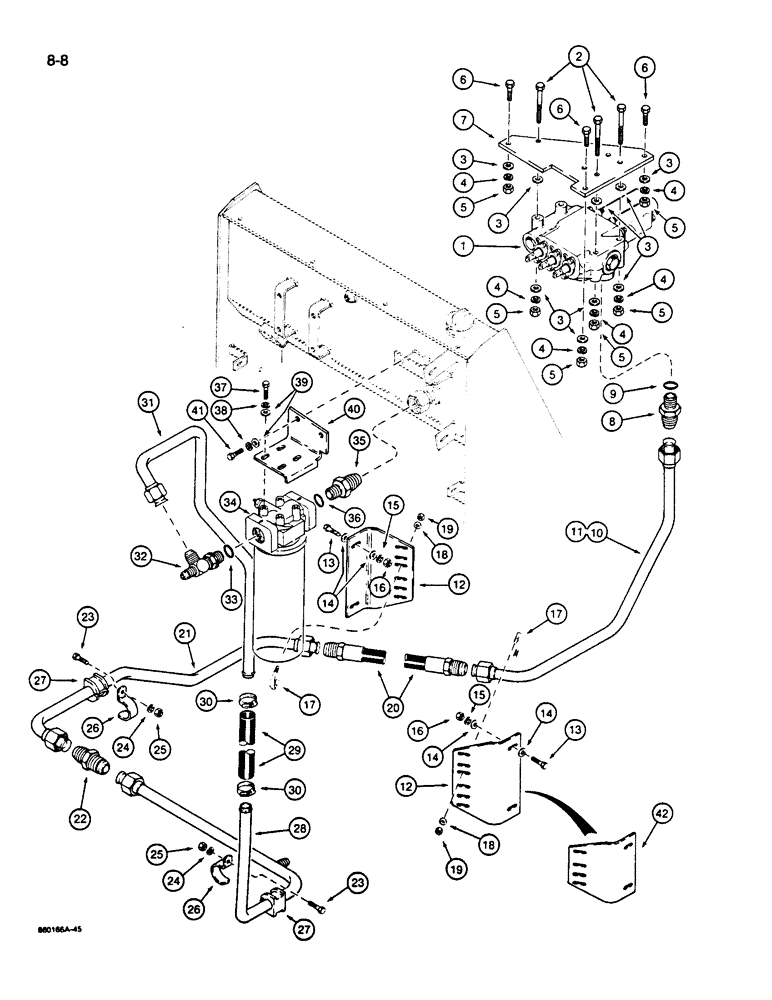

Запчасти Case W14B (8-08) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, see figures 8-18 and 8-20 for correct valve assembly and components

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

195-106

WASHER,1/2"

- flat, , plated 1/2"

9шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

7

L112631

PLATE

- valve mounting

1шт.

8

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

10

L115843

TUBE ASSY.,31.75 mm OD

TUBE - return from loader valve, two spool, if used

1шт.

11

L115968

TUBE ASSY.,31.75 mm OD

TUBE - return from loader valve, three spool, if used

1шт.

12

L117452

BRACKET

- return tubes, used with axle mounted parking brake

2шт.

13

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

14

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

L104253

U-BOLT

- tube mount

2шт.

18

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

20

L115834

HOSE ASSY.

HOSE - 26" (660 mm) long, return, through center joint

1шт.

21

L116833

TUBE,31.75 mm OD

- return to filter, left-hand, rear chassis

1шт.

22

218-439

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male JIC

ADAPTER - straight

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D68845

MOUNTING CLIP

CLAMP - tube

2шт.

27

D67298

INSULATOR

- tube clamp

2шт.

28

L116909

TUBE ASSY.

TUBE - return to filter, crossover

1шт.

29

L113907

HOSE,1.25" ID x 9.00", SAE 100R3

Return 1.25" ID x 9.00", SAE 100R3

1шт.

30

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

31

L118614

TUBE ASSY.,31.75 mm OD x 655, 924 mm L

TUBE - return to filter

1шт.

32

218-5240

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 1 5/8"-12

- adjustable, filter inlet, Includes: Ref. 33

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

34

A167610

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-30

1шт.

35

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

37

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

39

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

40

L123607

BRACKET

- filter mounting

1шт.

41

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

42

L115716

BRACKET

- return tubes, used with transmission mounted parking brake

2шт.
